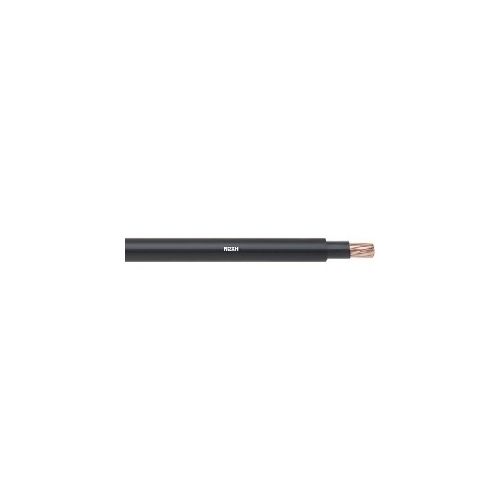

1550651 | N2XH-J 3 X 95 / 50 SM | Direct Burial Cable
Halogen-free power cable with improved fire characteristics for fixed installation, 3 Core, Conductor Diameter: 95mm²
| Complete Electronics Part No. | 1550651 |
|---|---|
| Manufacturers Part No. | 1550651 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 95mm² |
Description
N2XH-J 3 X 95 / 50 SM
Halogen-free power cable with improved fire characteristics
- Number of Cores: 3
- Conductor Diameter: 95mm²
- Sectorial conductor form
- Multi-wire conductor
- For installation on or under the plaster
- Halogen-free alternative to the PVC installation cable NYY-J, NYY-O
- No direct burial or installation in water
- Core ID: Colour-coded according to VDE 0293-308
- Nominal voltage: U0/U: 0.6/1.0 kV
- Outer sheath: halogen-free, thermoplastic polyolefin compound
- Core insulation: Cross-linked Polyethylen (XLPE)
- Temperature Range - Fixed Installation: -40°C to +90°C
- Cable Outer Diameter 34.9mm
- Reel Length: 1000 Metres
