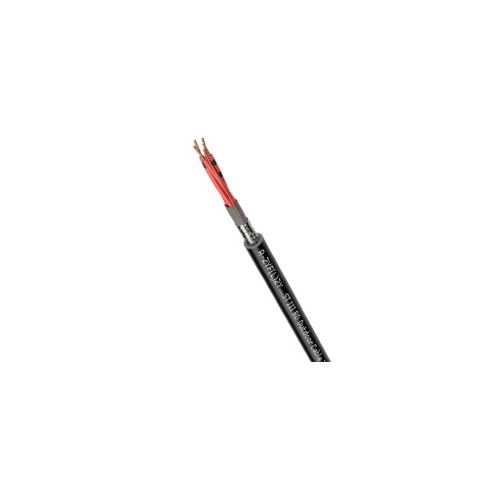

1591153 | A-2Y(L)2Y...ST III BD 10X2X0,8 | Outdoor Cable
Telephone Outdoor cable VDE 0816, Number of double cores: 20, Cable Outer Diameter: 15mm, Suitable for direct burial, For use as outdoor cable
| Complete Electronics Part No. | 1591153 |
|---|---|
| Manufacturers Part No. | 1591153 |
| Number of Conductors: | 20 |
| Conductor Cross Section: | 0.5mm² |
| Cable Type: | Telephone Outdoor Cable |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PE |
Description
1591153 Telephone/Outdoor cable; VDE 0816; PE; Shielded
A-2Y(L)2Y...ST III BD 10x2x0,8, Laterally watertight
Product Design
Core Idendification: Colours (VDE0816)
Outer sheath: Polyethylene (PE)
Shielded: Yes
Cable sheath colour: Black
Shape of cable: Round
Without protective conductor
Number of Cores: 20 (10 pairs)
Conductor: Bare copper
Conductor cross section: 0.5 mm²
Nominal outer diameter; 15mm
Screened (Aluminium-laminated plastic foil)
Weight: 235 kg/km
Max. conductor temperature, fixed installation: -40°C to 70°C
Max. conductor temperature, foccasionally moved: -20°C to 50°C
Electrical / Insulation Parameters
Maximum operating voltage 225V (not for power applications)
Test voltage: Conductor / Conductor 500 V
Test voltage: Conductor / Shield 2000 V
Conductor material: bare copper
Outer sheath: Polyethylene (PE)
Core Insulation: Polyethylene (PE)
Core identification: Colours
Outer sheath colour: Black (RAL9005)
Product Features
Flame retardant - No
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - Yes
Laterally watertight - Yes
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Transverse watertight thanks to aluminium-PE coating
For use as outdoor cable for telecommunication and information processing
Can be used as underground and tube cable
Suitable for outdoor use
Flexible use at temperatures down to -20°C
Industry segment: Renewable Energy: Solar
EAC Certified, CE marked, VDE Certified
Lapp part number: 1591153
Length: 100M
