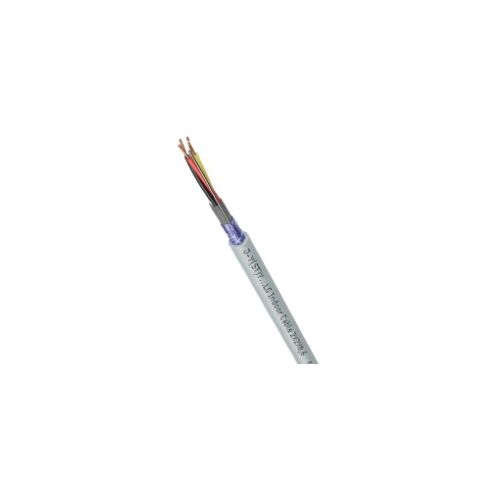

1591302 | J-Y(ST)Y...LG 3X2X0,6 | Indoor Cable
Indoor cables for analogue or digital signals, Number of Double Cores: 3, Cable Outer Diameter: 6.3mm,Twisted-pair (TP) design, shielded
| Complete Electronics Part No. | 1591302 |
|---|---|
| Manufacturers Part No. | 1591302 |
| Number of Conductors: | 6 |
| Conductor Cross Section: | 0.28mm² |
| Cable Type: | Indoor Cable |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
Description
1591302 - J-Y(ST)Y...LG 3X2X0,6 - Indoor Cable
For use in control, regulation and measurement circuits, VDE 0815
Product Design
Core Idendification: Colours (VDE0815)
Outer sheath: Polyvinylchloride (PVC)
Shielded: Yes
Cable sheath colour: Grey
Shape of cable: Round
Without protective conductor
Number of Cores: 6 (3 pairs)
Conductor: Bare copper
Conductor cross section: 0.28 mm²
Nominal outer diameter; 6.3mm
Screened with Aluminium-laminated plastic foil
Weight: 50 kg/km
Max. conductor temperature, fixed installation: -30°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Maximum operating voltage 300V (not for power applications)
Test voltage: Conductor / Conductor 800 V
Test voltage: Conductor / Shield 800 V
Conductor material: Bare copper
Outer sheath: Polyvinylchloride (PVC)
Core Insulation: Polyvinylchloride (PVC)
Core identification: Colours
Outer sheath colour: Grey
Product Features
Flame retardant - Yes IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Hydrolysis resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - Yes
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
With Grey outer jacket
Highly flame retardant materials
Reduces the risk of flame propagation, high smoke density and toxic smoke
Ideal protection against electromagnetic interference thanks to static shielding
CPR fire class:Eca
Can be used in dry and damp spaces
For installation on, in or under plaster, in brickwork and in stationary concrete
The PVC outer sheath is somewhat oil-resistant
EAC Certified, CE marked
Lapp part number: 1591302
Length: 100M
