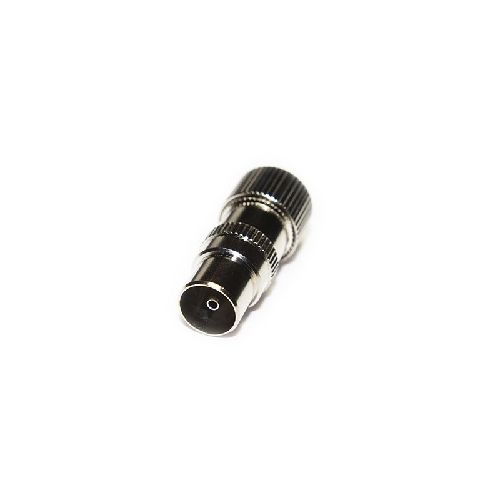

16-020-A0-A I | 16020A0AI | Euro TV Plug
Euro TV straight 75 ohm crimp plug with gold plated centre contact. Suitable for use with RG59 and similar cables in group AI.
| Complete Electronics Part No. | 16020A0AI |
|---|---|
| Manufacturers Part No. | 16-020-A0-A I |
Description
Electrical Specification
- Impedance: 75Ohm
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Screw
- Outer Contact Termination: Screw
- Mating Cycles: 50
- Cable Retention: 120N min
- Mating Force: 10N max
- Un-Coupling Force: 10N max
- Operating Temperature: -40 to +80°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: Delrin
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
