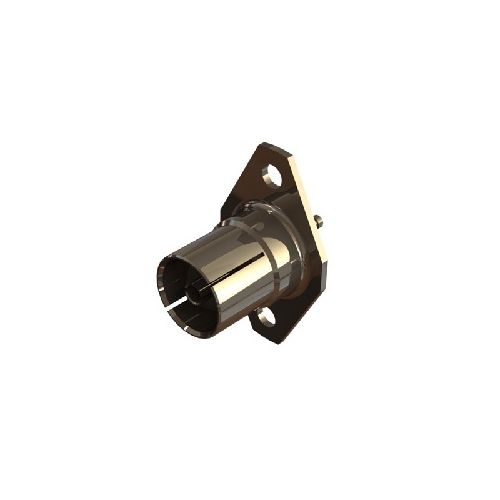

16-275-B6 | 16275B6 | 2 Hole Flange Mount Jack
9.52 Connector, also known as Euro TV 75 ohm, This 2 Hole Flange Mount Jack, the centre contact can be soldered or snap fit, For European TV (PAL) connections.
| Complete Electronics Part No. | 16275B6 |
|---|---|
| Manufacturers Part No. | 16-275-B6 |
Description
Electrical Specification
- Impedance: 75Ohm
- Frequency Range: 3 GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Screw
- Mating Cycles: 500
- Cable Retention: 120N min
- Weight: 6.4g
- Mating Force: 10N max
- Un-Coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Nickel
- Outer Contact Plating: Nickel
- Pack Size 1
