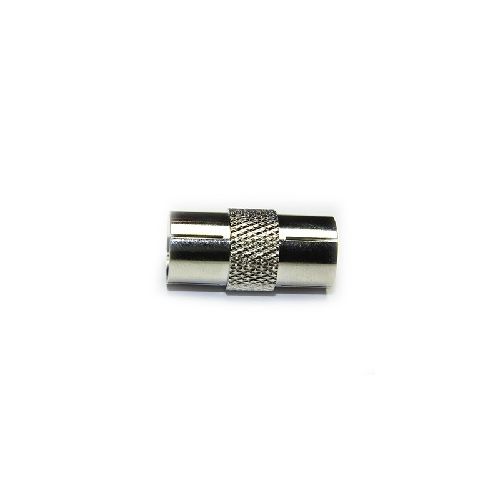

16-500-A0 | 16500A0 | Euro TV Adaptor Jack to Jack
Euro TV straight 75 ohm jack to jack adaptor with gold plated centre contact. Connector used for European TV (PAL) connections.
| Complete Electronics Part No. | 16500A0 |
|---|---|
| Manufacturers Part No. | 16-500-A0 |
Description
Electrical Specification
- Impedance: 50Ohm
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 50
- Mating Force: 10N max
- Un-Coupling Force: 10N max
- Operating Temperature: -40 to +80°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: Delrin
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
