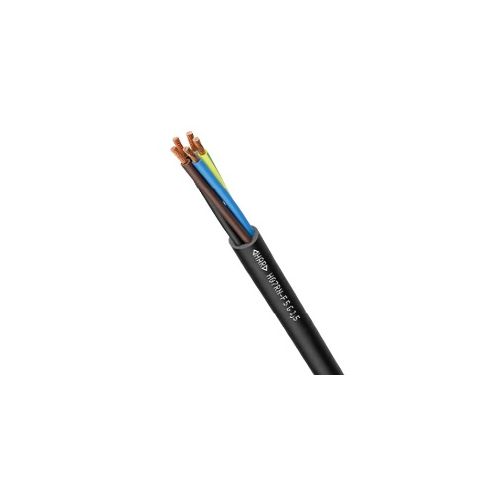

1600118 | H07RN-F 3G2,5 | Harsh Conditions Cable
Rubber power and control cable, Heavy standard construction, Number of Conductors: 3, Conductor Diameter: 2.5mm²
| Complete Electronics Part No. | 1600118 |
|---|---|
| Manufacturers Part No. | 1600118 |
| Series: | H07RN F |
| Number of Conductors: | 3 |
| Conductor Size: | 2.5mm² |
| Rated Voltage: | 450 / 750 V |
| Cable Type: | Rubber power and control cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | Rubber compound, type EM2 |
Description
H07RN-F 3G2,5
Rubber power and control cable
- Heavy standard construction
- Number of Conductors: 3
- Conductor Diameter: 2.5mm²
- Cable Outer Diameter: 10.9 - 12.5mm
- With GN-YE Protective Conductor
- Flame-retardant according IEC 60332-1-2
- Oil-resistant according to EN 60811-404
- Type approval according to EN 50525-2-21
- Core insulation: rubber compound, type EI 4
- Outer sheath: rubber compound, type EM2
- Core ID: Colour-coded according to VDE 0293-308
- Nominal Voltage: 450 / 750 V
- Temperature range: -25°C to +60°C
- Class 5
- UV resistant
- Reel Length= 50M
