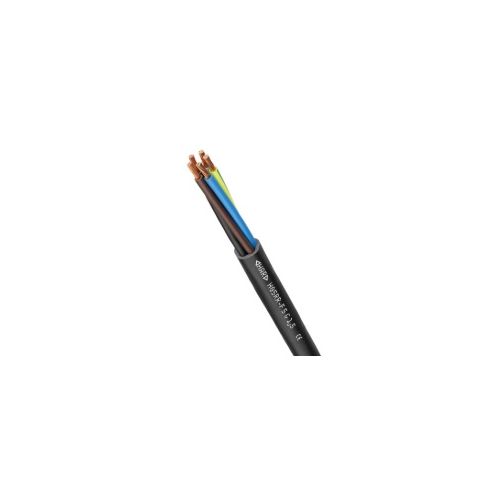

1600207 | H05RR-F 3G0,75 | Harsh Conditions Cable
Rubber cable for handheld devices, Number of Conductors: 3, Conductor Diameter: 0.75mm², Cable Outer Diameter: 6.2 - 8.1mm, With GN/YE Protective conductor
| Complete Electronics Part No. | 1600207 |
|---|---|
| Manufacturers Part No. | 1600207 |
| Series: | H05RR F |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Cable Type: | Rubber cable for handheld devices |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | Rubber compound, type EM3 |
| Cable Length: | 100 Metres |
Description
1600207 | H05RR-F Cable, 3G0.75
Multi Core Rubber Power and Control Cable
Number of Conductors: 3
Conductor Diameter: 0.75mm²
Cable Outer Diameter: 6.2 - 8.1mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber (EI4 acc. to EN 50363-1)
Core identification: Colour-coded acc. to VDE 0293-308
Outer Sheath material: Rubber (EM3 acc. to EN 50363-2-1)
Outer Sheath colour: Black
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber (EI4 acc. to EN 50363-1)
Core identification: Colour-coded acc. to VDE 0293-308
Outer Sheath material: Rubber (EM3 acc. to EN 50363-2-1)
Outer Sheath colour: Black
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Current rating according to VDE 0298-4
Test Voltage: 2kV
Max. conductor resistance at 20°C: 7.98 Ω/km
Temperature, fixed installation: -40°C to 60°C
Temperature, occasionally moved: -25°C to 60°C
Current rating according to VDE 0298-4
Test Voltage: 2kV
Max. conductor resistance at 20°C: 7.98 Ω/km
Temperature, fixed installation: -40°C to 60°C
Temperature, occasionally moved: -25°C to 60°C
Flame retardant - No
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - No
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - No
For use with hand-held or power supply devices and simple tool devices
For fixed installation and occasional flexing
Withstands light mechanical stress
Can be used in dry and damp rooms
Can be used for a limited period of time outdoors
For fixed installation and occasional flexing
Withstands light mechanical stress
Can be used in dry and damp rooms
Can be used for a limited period of time outdoors
For use with hand-held or power supply devices and simple tool devices
For fixed installation and occasional flexing
Withstands light mechanical stress
Can be used in dry and damp rooms
Can be used for a limited period of time outdoors
For fixed installation and occasional flexing
Withstands light mechanical stress
Can be used in dry and damp rooms
Can be used for a limited period of time outdoors
Reel Length= 100M
Lapp part number: 1600207
