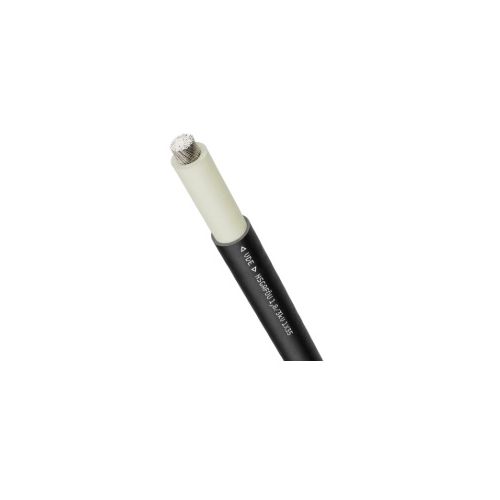

1600303 | NSGAFOU 1,8/3KV 1X6 | Harsh Conditions Cable
Single-conductor rubber cable, Number of Conductors: 1, Conductor Diameter: 6mm², Cable Outer Diameter: 9.5mm, Without GN/YE Protective conductor
| Complete Electronics Part No. | 1600303 |
|---|---|
| Manufacturers Part No. | 1600303 |
| Series: | NSGAFOU |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 6.0mm² |
| Rated Voltage: | 1.8 / 3KV |
| Cable Type: | Single-conductor rubber cable |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | Rubber compound, type 5GM3 |
| Cable Length: | 100 Metres |
Description
1600303 | ÖLFLEX® NSGAFOU 1.8/3KV 1X6
Rubber Single Core Not Shielded Power and Control Cable
Number of Conductors: 1
Conductor Diameter: 6mm²
Cable Outer Diameter: 9.5mm
Without Protective Conductor
Conductor material: Tin-plated Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Outer Sheath material: Rubber type 3GI3
Outer coating type 5GM3
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Outer Sheath material: Rubber type 3GI3
Outer coating type 5GM3
Nominal voltage: U0/U: 1.8/3 kV AC rms according to IEC
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.0654 Ω/km
Temperature, fixed installation: -40°C to 90°C
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.0654 Ω/km
Temperature, fixed installation: -40°C to 90°C
Chemical resistant - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes acc. to EN 50267-2-1, EN 50267-2-2
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to VDE 0207-21
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - Yes
Weather resistant: - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes acc. to EN 50267-2-1, EN 50267-2-2
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to VDE 0207-21
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - Yes
Weather resistant: - No
Cable certified in accordance with VDE type NSGAFÖU with ◁VDE▷ testing mark
Suitable for short circuit- and short-to-ground-proof installation up to 1000 V
For fixed installation in ducts and closed installation channels
Suitable for wiring inside control cabinets
Can be used in dry and oily environments
Suitable for short circuit- and short-to-ground-proof installation up to 1000 V
For fixed installation in ducts and closed installation channels
Suitable for wiring inside control cabinets
Can be used in dry and oily environments
Halogen free and highly flame retardant materials
Reduces the risk of flame propagation, high smoke density and toxic flue gases in the event of a fire.
Not suitable for torsional load (max strain:15 N/mm²)
Flexible use at temperatures down to -25°C
Compliant with standards for use in rail vehicles and buses
EAC certified, VDE certified to VDE 0250-602
Reduces the risk of flame propagation, high smoke density and toxic flue gases in the event of a fire.
Not suitable for torsional load (max strain:15 N/mm²)
Flexible use at temperatures down to -25°C
Compliant with standards for use in rail vehicles and buses
EAC certified, VDE certified to VDE 0250-602
Reel Length= 100M
Lapp part number: 1600303
