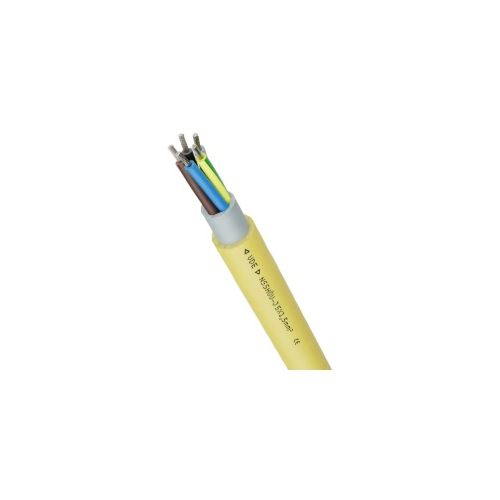

16005373 | NSSHOU-J 5G10 | Harsh Conditions - mining Cable
Robust rubber cable for mining and surface mining, Suitable for connection cable for welding equipment, Number of Conductors: 5, Conductor Diameter: 10.0mm²
| Complete Electronics Part No. | 16005373 |
|---|---|
| Manufacturers Part No. | 16005373 |
| Series: | NSSHOU |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 10.0mm² |
| Rated Voltage: | 600 / 1000V |
| Cable Type: | Multi Core Rubber Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | Rubber compound, type 5GM5 |
| Cable Length: | 500 Metres |
Description
16005373 | ÖLFLEX® NSSHOU -J 5G10
Rubber Multi Core Non Shielded Power and Control Cable
Number of Conductors: 5
Conductor Diameter: 10.0mm²
Cable Outer Diameter: 24.1mm
With GN-YE Protective Conductor
Conductor material: Tin-plated Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Core colour code: VDE 0293-308
Outer Sheath material: Rubber
Outer Sheath colour: Yellow
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Core colour code: VDE 0293-308
Outer Sheath material: Rubber
Outer Sheath colour: Yellow
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.393 Ω/km
Temperature, fixed installation: -40°C to 90°C
Temperature, occasionally moved: -25°C to 90°C
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.393 Ω/km
Temperature, fixed installation: -40°C to 90°C
Temperature, occasionally moved: -25°C to 90°C
Chemical resistant - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to VDE 0207-21
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - Yes
Weather resistant: - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to VDE 0207-21
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - Yes
Weather resistant: - Yes
Suitable for connection cable for welding equipment
Cable certified in accordance with VDE type NSSHÖU, with ◁VDE▷ testing mark
Notch and cut-resistant rubber compound as well as additional inner sheath
Can be used in dry, damp and, especially, harsh and oily environments
Withstands high mechanical stress
Can be used in dry and oily environments
Cable certified in accordance with VDE type NSSHÖU, with ◁VDE▷ testing mark
Notch and cut-resistant rubber compound as well as additional inner sheath
Can be used in dry, damp and, especially, harsh and oily environments
Withstands high mechanical stress
Can be used in dry and oily environments
Extremely weather-resistant with a wide temperature range
Universally usable for connecting mobile devices and machines to the power supply
Not suitable for torsional loads
Suitable for outdoor use
Flexible use at temperatures down to -25°C
CE marked, EAC certified, VDE certified - VDE 0250-812
Universally usable for connecting mobile devices and machines to the power supply
Not suitable for torsional loads
Suitable for outdoor use
Flexible use at temperatures down to -25°C
CE marked, EAC certified, VDE certified - VDE 0250-812
Reel Length= 500M
Lapp part number: 16005373
