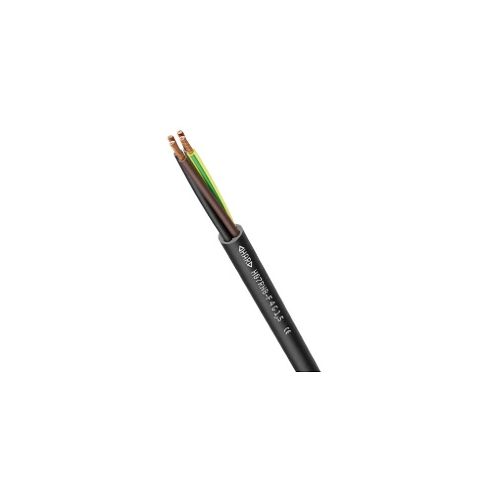

1600611 | H07RN8-F 4G4 | Harsh Conditions Cable
Submersible pump cable, Formerly: OLFLEX AQUA RN8, Number of Conductors: 4, Conductor Diameter: 4mm², With GN/YE Protective conductor
| Complete Electronics Part No. | 1600611 |
|---|---|
| Manufacturers Part No. | 1600611 |
| Series: | H07RN8 F |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 4.0mm² |
| Rated Voltage: | 450 / 750 V |
| Cable Type: | Submersable Pump Cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | Rubber compound, type EM2 |
| Cable Length: | 50 Metres |
Description
1600611 | ÖLFLEX® H07RN8-F 4G4
Rubber Power and Control Cable, (Formerly OLFLEX AQUA 8)
Formerly: OLFLEX AQUA RN8
Number of Conductors: 4
Conductor Diameter: 4mm²
Cable Outer Diameter: 14.00 - 17.9mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Core identification: Colours
Core Colour code: VDE 0293-308
Outer Sheath material: Rubber
Outer Sheath colour: Black
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Core identification: Colours
Core Colour code: VDE 0293-308
Outer Sheath material: Rubber
Outer Sheath colour: Black
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Fixed installation Nominal voltage:U0/U: 0,6/1 kV AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 60°C
Temperature, occasionally moved: -25°C to 60°C
Fixed installation Nominal voltage:U0/U: 0,6/1 kV AC rms according to IEC
Current rating according to VDE 0298-4
Temperature, fixed installation: -40°C to 60°C
Temperature, occasionally moved: -25°C to 60°C
Chemical resistant -
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - Yes (EN 50363-2-1)
Ozone resistant: -
Permanently immersible in water - Yes acc.to EN 50525-2-21
PWIS-free - No
UV-resistant - Yes, (cables with a black sheath are suitable for permanent outdoor use)
Water resistant: -Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - No
Low-adhesion sheath surface -No
Oil-resistant - Yes (EN 50363-2-1)
Ozone resistant: -
Permanently immersible in water - Yes acc.to EN 50525-2-21
PWIS-free - No
UV-resistant - Yes, (cables with a black sheath are suitable for permanent outdoor use)
Water resistant: -Yes
Suitable as a flexible power or extension cable
Typical areas of application are machine tools or submersible pumps
For fixed installation and occasional flexing without tensile strain
Can be used in dry, damp or wet environments
Suitable for underwater use
Withstands high mechanical stress
Typical areas of application are machine tools or submersible pumps
For fixed installation and occasional flexing without tensile strain
Can be used in dry, damp or wet environments
Suitable for underwater use
Withstands high mechanical stress
Flexible use at temperatures down to -25°C
Made according to harmonised European type H07RN8-F, with ◁HAR▷ testing mark
◁HAR▷-style cables are widely accepted and can be used in Europe
Tested according to standards for use in fresh water up to a water depth of 10m and a water temperature of 40 °C
Made according to harmonised European type H07RN8-F
CE Marked, EAC Certified, ◁HAR▷ Certified
Made according to harmonised European type H07RN8-F, with ◁HAR▷ testing mark
◁HAR▷-style cables are widely accepted and can be used in Europe
Tested according to standards for use in fresh water up to a water depth of 10m and a water temperature of 40 °C
Made according to harmonised European type H07RN8-F
CE Marked, EAC Certified, ◁HAR▷ Certified
Reel Length= 50M
Lapp part number: 1600611
