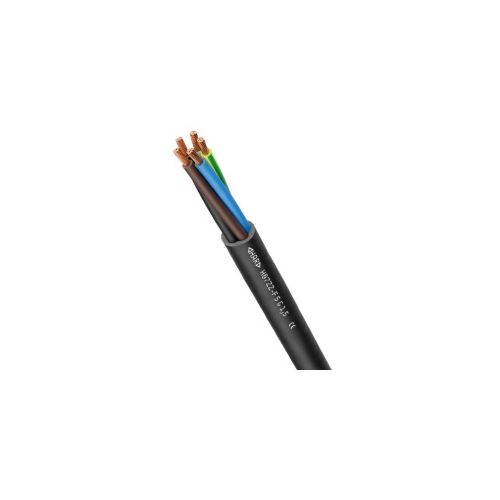

1600842 | H07ZZ-F 5G6 | Harsh Conditions Cable
Rubber power and control cable, For mobile equipment and machines, Number of Conductors: 5, Conductor Diameter: 6.0mm², With GN/YE Protective conductor
| Complete Electronics Part No. | 1600842 |
|---|---|
| Manufacturers Part No. | 1600842 |
| Series: | H07ZZ F |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 6.0mm² |
| Rated Voltage: | 450 / 750 V |
| Cable Type: | Rubber power and control cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | Halogen Free |
| Cable Length: | 50 Metres |
Description
1600842 | ÖLFLEX® H07ZZ-F 5G6
Rubber Multi Core Non Shielded Power and Control Cable
Number of Conductors: 5
Conductor Diameter: 6.0mm²
Cable Outer Diameter: 17.5 - 22.2mm
With GN-YE Protective Conductor
Conductor material: Bare Copper
Conductor design: IEC 60228 class 5: fine-wire
Core insulation: Rubber
Core identification: Colours - VDE 0293-308 / Numbered
Outer Sheath material: Rubber
Outer Sheath colour: Black
Conductor design: IEC 60228 class 5: fine-wire
Core insulation: Rubber
Core identification: Colours - VDE 0293-308 / Numbered
Outer Sheath material: Rubber
Outer Sheath colour: Black
Nominal voltage: U0/U: 450/750 V AC rms according to IEC
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.386 Ω/km
Temperature, fixed installation: -40°C to 90°C
Temperature, occasionally moved: -5°C to 90°C
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.386 Ω/km
Temperature, fixed installation: -40°C to 90°C
Temperature, occasionally moved: -5°C to 90°C
Chemical resistant - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes EN 50525-1 Annex B, EN 50267-2-2
Low-adhesion sheath surface -No
Oil-resistant - Yes EN 50363-6
Ozone resistant: - Yes - EN 60811-403, EN 50396, method B
Permanently immersible in water - No
PWIS-free - No
UV-resistant: - Yes acc. to EN 50525-1
Weather resistant: - Yes
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes EN 50525-1 Annex B, EN 50267-2-2
Low-adhesion sheath surface -No
Oil-resistant - Yes EN 50363-6
Ozone resistant: - Yes - EN 60811-403, EN 50396, method B
Permanently immersible in water - No
PWIS-free - No
UV-resistant: - Yes acc. to EN 50525-1
Weather resistant: - Yes
Made according to harmonised European type H07ZZ-F, with ◁HAR▷ testing mark
◁HAR▷-style cables are widely accepted and can be used in Europe
Can be used in dry, damp or wet interiors
Cables with a black sheath are suitable for permanent outdoor use
Withstands high mechanical stress
Suitable for outdoor use
◁HAR▷-style cables are widely accepted and can be used in Europe
Can be used in dry, damp or wet interiors
Cables with a black sheath are suitable for permanent outdoor use
Withstands high mechanical stress
Suitable for outdoor use
For structured building cabling for fulfilling special fire protection requirements
Halogen free core insulation and sheath compound to meet special fire safety requirements
In the case of fixed and protected installation, operation is also possible up to 1000 V
Not suitable for torsional loads
CE marked, EAC certified, HAR certified - EN 50525-3-21
Halogen free core insulation and sheath compound to meet special fire safety requirements
In the case of fixed and protected installation, operation is also possible up to 1000 V
Not suitable for torsional loads
CE marked, EAC certified, HAR certified - EN 50525-3-21
Reel Length= 500M
Lapp part number: 1600842
