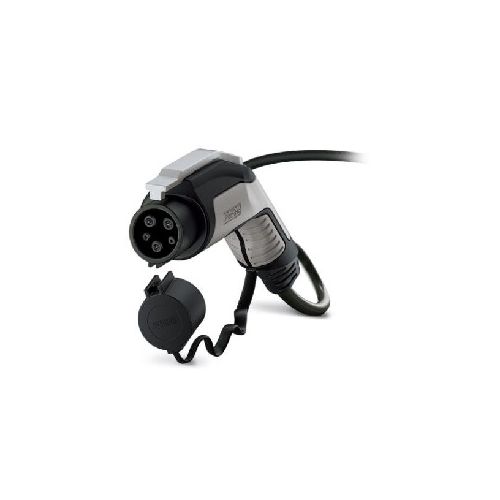

1623237 | Type 1 Vehicle Connector to Open Cable End
CHARX connect, AC charging cable with type 1 vehicle charging connector and open cable end, with protective cap, ***No longer in product range***
| Complete Electronics Part No. | 1623237 |
|---|---|
| Manufacturers Part No. | 1623237 |
| Cable Type: | Single Phase |
| Type: | Type 1 Vehicle Connector to Open Cable End |
| Cable Length: | 4 Metres |
| Rated Current: | 15A |
Description
EV-T1G2K-1AC15A-4,0M14ASBK01
EV Charger Cord Set
- ***No longer in product range***
- AC charging cable
- Single Phase
- 250 V (AC)
- Rated Current: 15 Amps
- Charging Power: 3.75 kW
- Charging Mode: Mode 3, Case C
- 3 Power Contacts (L1, N, PE)
- Crimp Connection
- With protective caps
- Housing colour Black - Grey
- Alternating current (AC) via type 1 vehicle inlets
- Silver-plated surface of the power and signal contact
- Locking Option for Padlock
- Suitable for all weather conditions
- Special cable design for a long service life
- Operating Temperature: -30 °C to 50 °C
- Oil, Dust and water resistant
- Black Straight cable
- Cable Length: 4 metres
- IP Protection IP44 when plugged in, IP54 with protective Cap
- Country of Origin: PL (Poland)
