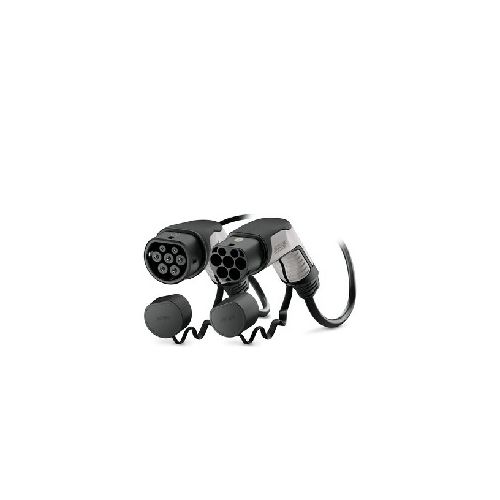

1627688 | Mobile AC charging cable Type 2 to Type GB/T
CHARX connect, Mobile AC charging cable with vehicle charging connector and infrastructure charging plug, ***No longer in product range***
| Complete Electronics Part No. | 1627688 |
|---|---|
| Manufacturers Part No. | 1627688 |
| Cable Type: | Single Phase |
| Type: | Charging Cable Type 2 to Type GB/T |
| Cable Length: | 5 Metres |
| Rated Current: | 32A |
Description
EV-TBG3JC-1AC32A-5,0M6,0ESBK01
EV Charger Cord Set
- ***No longer in product range***
- AC charging cable
- Single Phase
- 250 V (AC)
- Rated Current: 32 Amps
- Charging Power: 8 kW
- Charging Mode: Mode 3, Case B
- 3 Power Contacts (L1, N, PE)
- Crimp Connection
- With protective caps
- Housing colour Black - Grey
- Locking Option for Padlock
- Alternating current (AC) via type 2 vehicle inlet
- Compatible with type GB/T Infrastructure Socket Outlets
- Silver-plated surface of the power and signal contact
- Suitable for all weather conditions
- Special cable design for a long service life
- Operating Temperature: -30 °C to 50 °C
- Oil, Dust and water resistant
- Black Straight cable
- Cable Length: 5 metres
- IP Protection IP55 when plugged in, IP54 with protective Cap
- Country of origin: (DE) Germany
