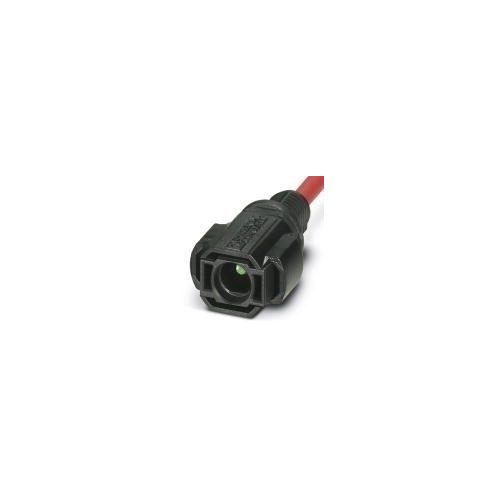

1705996 | PV-FT-CM-C-2,5-300-RD | Photovoltaic connector
PV Connector, Male, Cable Length: 300mm Nominal current: 27 A, nom. voltage: 1500 V, connection method: Crimp, colour: black
| Complete Electronics Part No. | 1705996 |
|---|---|
| Manufacturers Part No. | 1705996 |
| Male/Female: | Male |
| Rated Voltage: | 1500V |
| Rated Current: | 27A |
| Mounting: | Cable |
Description
PV-FT-CM-C-2,5-300-RD PV Connector
Male PV Connector
- Fixed Cable Length: 300mm
- Connection Method: Crimp
- Sheath Colour: Red
- Connector colour: Black
- Outer Sheath material: PE-X
- Rated Voltage: 1500V
- Rated Current: 27A
- Connection method: Crimp
- Ingress protection (mated) IP66 / IP68
- Operating Temperature: -40°C to +85°C
- Note: Can only be released using tool
