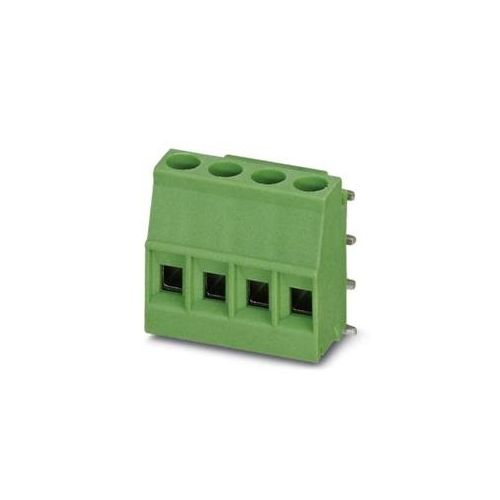

1707247 | MKDSO 2,5/ 4-R | PCB terminal block
PCB terminal block, For ME/ME MAX electronics housing, Nominal current: 24 A, Nominal voltage: 400V, Pitch: 5 mm, Number of positions: 4
| Complete Electronics Part No. | 1707247 |
|---|---|
| Manufacturers Part No. | 1707247 |
| Pitch | 5mm |
| Terminal Block Type: | PCB |
| Number Of Positions: | 4 |
Description
MKDSO 2,5/ 4-R
PCB terminal block
- For ME/ME MAX electronics housing
- Nominal current: 24 A
- Nominal voltage: 400V
- Pitch: 5 mm
- Number of positions: 4
- Connection method: Screw connection
- With tension sleeve
- Mounting: Wave soldering
- Colour: green
- with lateral pin exit
- Length: 15.3 mm
- Weight per Piece (excluding packing) 7.530 g
- Country of origin: Germany
