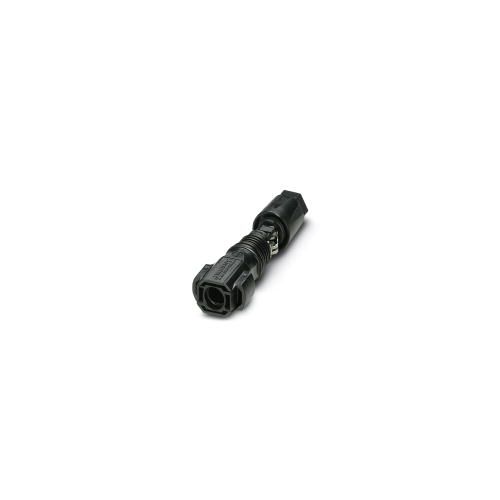

1774687 | PV-CM-S 2,5-6 (-) | Photovoltaic connector
PV Connector (-) Nominal current: 35 A, nom. voltage: 1100 V, connection method: Spring-cage, colour: black
| Complete Electronics Part No. | 1774687 |
|---|---|
| Manufacturers Part No. | 1774687 |
| Male/Female: | Male |
| Rated Voltage: | 1100V |
| Rated Current: | 35A |
| Mounting: | Cable |
Description
PV-CM-S 2,5-6 (-) PV Connector
Nominal current: 35 A
- Nominal voltage: 1100 V
- Connection method: Spring-cage
- Colour: Black
- Note: Can only be released using tool
- For Cable Diameter: 5.5mm to 8mm
- Operation Temperature: -40 °C to +85 °C
- For Cable type: H1Z2Z2-K cables
- Insulating Material: mPPE (modified Polyphenylene Ether)
- Contact material: Silver plated copper
- Overall Connector length: 60.5mm
- Ingress Protection (mated):IP66 / IP68
