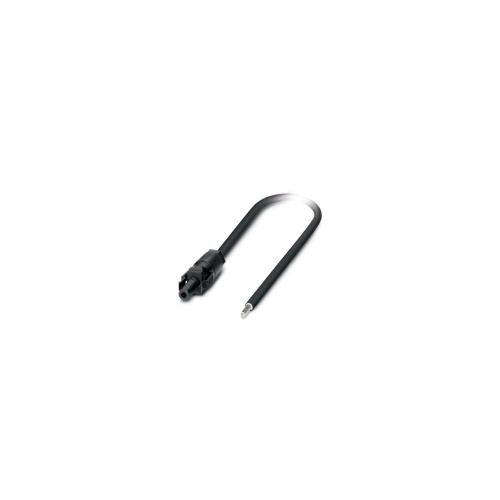

1780451 | PV-TC (+) 10-1,5M | Photovoltaic connector
Test plug (+) with tool-free release for applications with high insertion/withdrawal cycles
| Complete Electronics Part No. | 1780451 |
|---|---|
| Manufacturers Part No. | 1780451 |
| Type: | Test Plug |
Description
PV-TC (+) 10-1,5M PV Connector
Test plug (+) with tool-free release
- For applications with high insertion/withdrawal cycles
- Fixed Cable Length: 1.5mm
- External cable diameter 6.35mm
- Rated Voltage: 1100V
- Rated Surge Voltage: 12kV
- Insulation: PA
- Colour: Black
- Outer Sheath material: RADOX GKW S
- Nominal Cross Section 10mm²
- Operational Temperature: -20°C to 55°C
