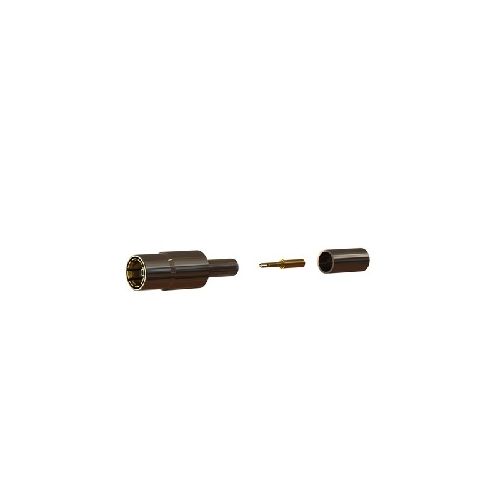

18-054-D36-AB | 18054D36AB | Straight Crimp
0.4/2.5 Micro Miniature Straight Crimp 75 Ohm Jack
| Complete Electronics Part No. | 18054D36AB |
|---|---|
| Manufacturers Part No. | 18-054-D36-AB |
| Type | DIN 0.4 / 2.5 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
RoHS3 Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Cable Retention 60N min
Weight 1.83g
Mating Force 10N max
Un-Coupling Force 25N max
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
