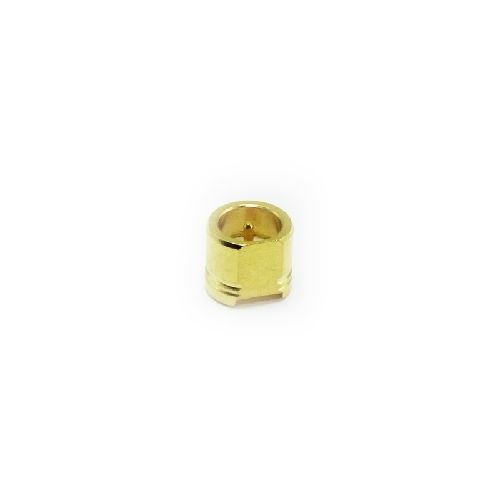

18-403-D6 | 18403D6 | Surface Mount Plug
0.4/2.5 Micro-miniature Straight Surface Mount 75ohm PCB Plug
| Complete Electronics Part No. | 18403D6 |
|---|---|
| Manufacturers Part No. | 18-403-D6 |
| Type | DIN 0.4 / 2.5 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
RoHS3 Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 250
Weight 0.6g
Mating Force 10N max
Un-Coupling Force 25N max
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
