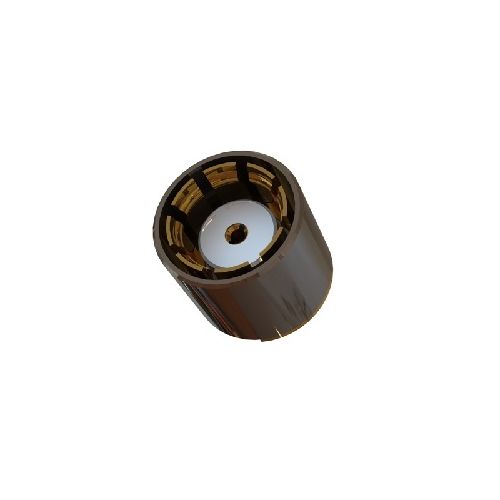

18-483-D3 | 18483D3 | Miniature Surface Mount Plug

0.4/2.8 Miniature Straight Surface Mount 50 ohm PCB Plug
More Information
Complete Electronics Part No 18483D3
Manufacturers Part No. 18-483-D3
Type DIN 0.4 / 2.5
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range Up to 4GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant Yes
  • Centre Contact Termination Solder
  • Outer Contact Termination Solder
  • Mating Cycles 250
  • Weight 0.6g
  • Mating Force 10N max
  • Un-Coupling Force 25N max
  • Operating Temperature -55 to +155 Deg C
  • IP Rating ( Mated ) IP30

Materials

  • Centre Contact BeCu
  • Outer Contact Phosphor Bronze
  • Insulator PTFE
  • Centre Contact Plating Gold
  • Outer Contact Plating Gold
  • Pack Size 1
