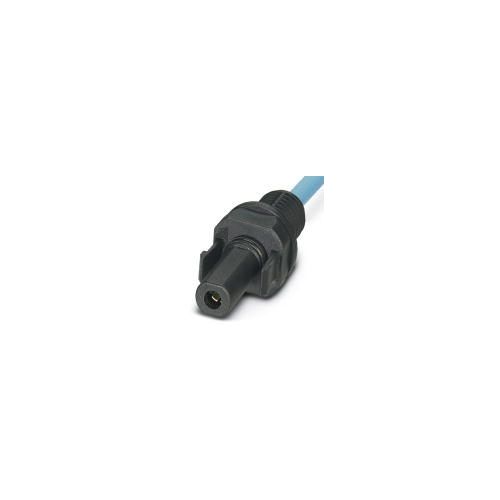

1804097 | PV-FT-CF-C-2,5-235-BU-FE | Photovoltaic connector
PV Connector, Female, Nominal current: 27 A, nom. voltage: 1500 V, connection method: Crimp, colour: black
| Complete Electronics Part No. | 1804097 |
|---|---|
| Manufacturers Part No. | 1804097 |
| Male/Female: | Female |
| Rated Voltage: | 1500V |
| Rated Current: | 27A |
| Mounting: | Cable |
Description
PV-FT-CF-C-2,5-235-BU-FE PV Connector
Female PV Connector
- Nominal current: 27 A
- Nominal voltage: 1500 V
- Connection method: Crimp
- Colour: Black
- Note: Can only be released using tool
- External Cable Diameter: 4.25mm
- Fixed Cable Length 235mm
- Outer Sheath Material: PE-X
- Sheath Colour: Blue
- Insulating Material: mPPE (modified Polyphenylene Ether)
- Contact material: Silver plated copper
- Overall Connector length: 43.2mm
- Ingress Protection (mated):IP66 / IP68
