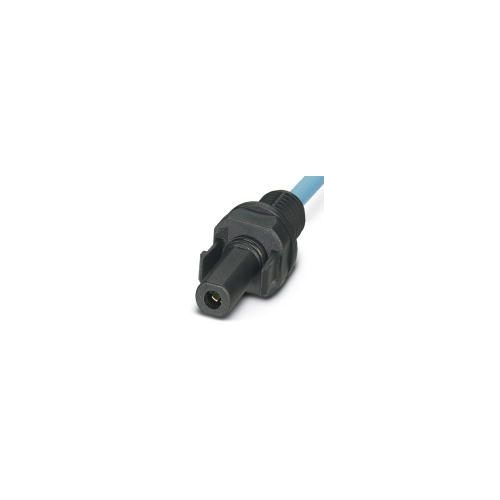

1805135 | PV-FT-CF-C-2,5-130-BU | Photovoltaic connector
PV Connector, Female, Preassembled SUNCLIX panel feed-through for use in photovoltaic systems
| Complete Electronics Part No. | 1805135 |
|---|---|
| Manufacturers Part No. | 1805135 |
| Male/Female: | Female |
| Rated Voltage: | 1500V |
| Rated Current: | 27A |
| Mounting: | Panel Mount |
Description
PV-FT-CF-C-2,5-130-BU PV Connector
Female PV Connector
- Fixed Cable Length: 130mm
- External Cable Diameter: 4.25mm
- Connection Method: Crimp
- Sheath Colour: Blue
- Connector colour: Black
- Outer Sheath material: PE-X
- Rated Voltage: 1500V
- Rated Current: 27A
- Preassembled SUNCLIX panel feed-through
- Ingress protection (mated) IP66 / IP68
- Operating Temperature: -40°C to +85°C
