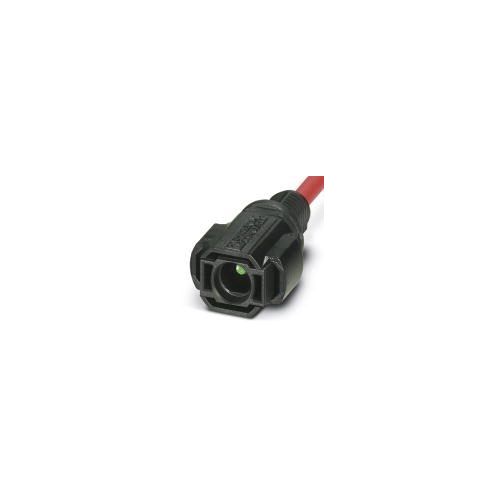

1806037 | PV-FT-CM-C-6-350-BK | Photovoltaic connector
PV Connector, Male, Cable Length: 350mm Nominal current: 40 A, nom. voltage: 1500 V, connection method: Crimp, colour: black
| Complete Electronics Part No. | 1806037 |
|---|---|
| Manufacturers Part No. | 1806037 |
| Male/Female: | Male |
| Rated Voltage: | 1500V |
| Rated Current: | 40A |
| Mounting: | Cable |
Description
PV-FT-CM-C-6-350-BK PV Connector
Male PV Connector
- Fixed Cable Length: 350mm
- External Cable Diameter: 5.4mm
- Connection Method: Crimp
- Rated Voltage: 1500V
- Rated Current: 40A
- Insulating Material: mPPE (modified Polyphenylene Ether)
- Outer Sheath Material: PE-X
- Outer Sheath colour: Black
- Ingress protection (mated) IP66 / IP68
- Operating Temperature: -40°C to +85°C
