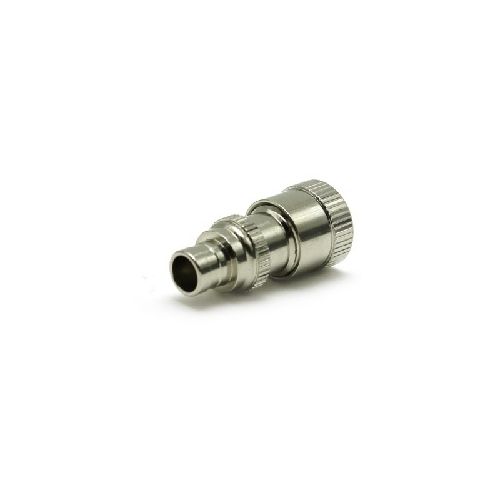

19-001-F3-AD | 19001F3AD | L1465 Straight Crimp/Clamp Plug
L1465 Miniature Coax Connector this straight crimp centre contact and clamp outer contact plus is suitable for cables in the AD group
| Complete Electronics Part No. | 19001F3AD |
|---|---|
| Manufacturers Part No. | 19-001-F3-AD |
| Male/Female: | Plug |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage: 500Veff
- Insulation Resistance: 5000M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Clamp
- Mating Cycles: 500
- Weight: 3.34g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Silver
- Outer Contact Plating: Nickel
