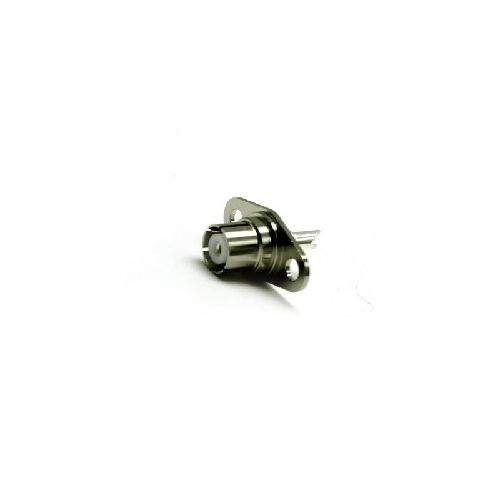

19-368-E3 | 19368E3 | L1465 2 Hole Flange Mount Jack
L1465 Miniature Coax Connector this 2 Hole Flange Mount Jack has been machined from solid phosphor bronze and nickel plated the centre contact is silver plated
| Complete Electronics Part No. | 19368E3 |
|---|---|
| Manufacturers Part No. | 19-368-E3 |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage: 500Veff
- Insulation Resistance: 5000M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: 2 Hole Flange
- Mating Cycles: 500
- Weight: 1.16g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Silver
- Outer Contact Plating: Nickel
