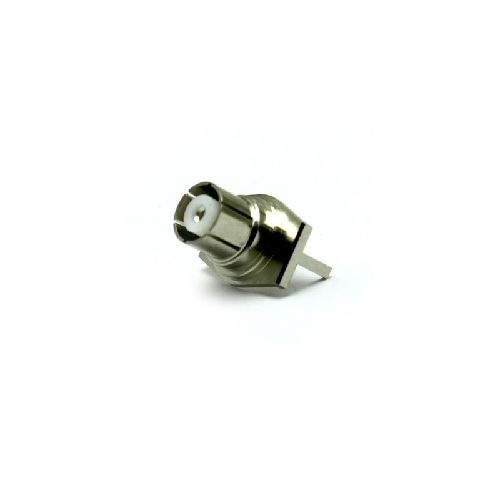

19-450-B3 | 19450B3 | L1465 Straight PCB Mount Jack

L1465 Miniature Coax Connector this PCB Mount Jack has been machined from solid phosphor bronze and nickel plated the centre contact is silver plated
More Information
Complete Electronics Part No. 19450B3
Manufacturers Part No. 19-450-B3
Male/Female: Jack
Type PCB Mounting
Impedance 50 Ohm
Working Frequency Up To 3 GHz
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 3GHz
  • Dielectric Withstand Voltage: 500Veff
  • Insulation Resistance: 5000M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: Solder
  • Mating Cycles: 500
  • Weight:  1.01g
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:   Phosphor Bronze
  • Insulator: PTFE
  • Centre Plating Contact: Silver
  • Outer Contact Plating: Nickel
