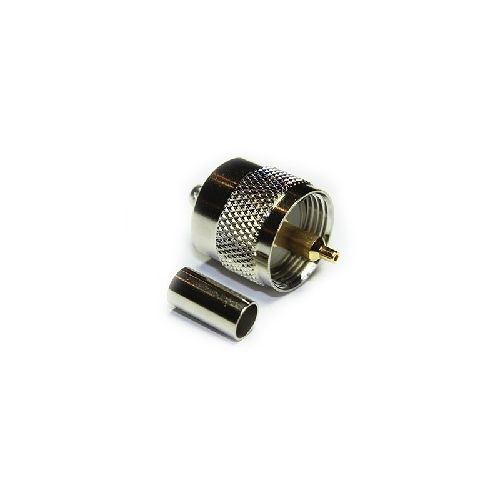

20-005-A0-AH | 20005A0AH | UHF Crimp Plug

UHF full crimp straight plug with gold plated contact and nickel plated body. Suitable for use with RG58 and similar cables in group AH
More Information
Complete Electronics Part No. 20005A0AH
Manufacturers Part No. 20-005-A0-AH
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 300MHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer  Contact Termination: Crimp
  • Mating Cycles: 250
  • Cable Retention: 100N min
  • Weight:
  • Mating Force: 20N Max
  • Uncoupling Force: 20N Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Threaded Coupling Nut: Brass
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
