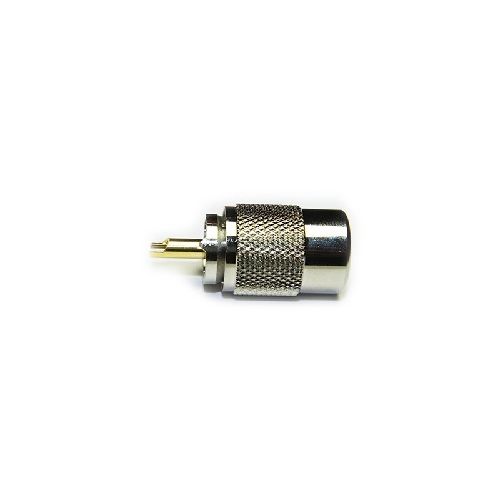

20-016-A0-AO | 20016A0AO | UHF Solder / Twist on Plug
UHF straight plug with soldered contact and Twist-On tool less fixing for the braid and jacket Suitable for use with RG214 and similar cables in group AO
| Complete Electronics Part No. | 20016A0AO |
|---|---|
| Manufacturers Part No. | 20-016-A0-AO |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 300MHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Twist
- Mating Cycles: 250
- Cable Retention: 220N min
- Weight:
- Mating Force: 20N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Threaded Coupling Nut: Brass
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
