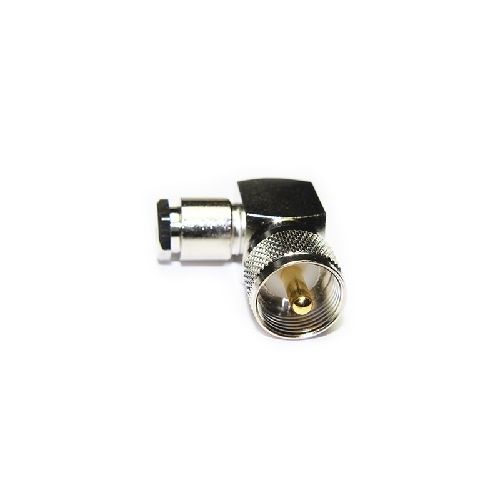

20-100-A3-AH | 20100A3AH | UHF R/A Solder / Clamp Plug
UHF right angle solder clamp plug. Gold plated inner contact is soldered and braid and jacket are clamped Suitable for RG58 and similar cables in group AH
| Complete Electronics Part No. | 20100A3AH |
|---|---|
| Manufacturers Part No. | 20-100-A3-AH |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 300MHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Clamp
- Mating Cycles: 250
- Cable Retention: 100N min
- Weight:
- Mating Force: 20N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
