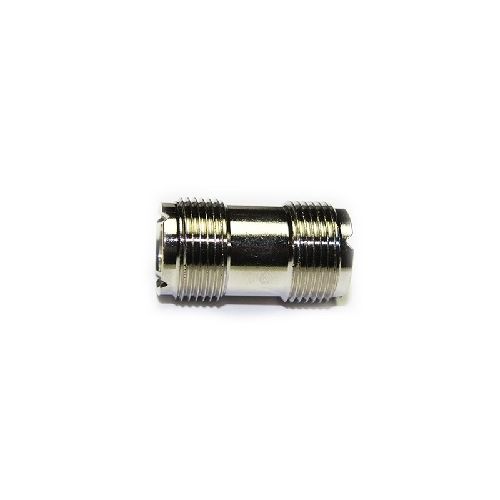

20-500-A0 | 20500A0 | UHF Straight Jack to Jack Adaptor

UHF straight jack to jack adaptor with gold plated centre contact and nickel plated body
More Information
Complete Electronics Part No. 20500A0
Manufacturers Part No. 20-500-A0
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 300MHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Mating Cycles: 250
  • Weight:
  • Mating Force: 20N Max
  • Uncoupling Force: 20N Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
