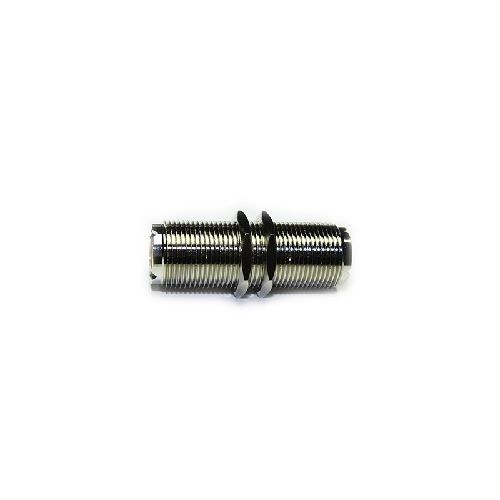

20-501-A0 | 20501A0 | UHF Straight Bulkhead Jack to Jack
UHF straight bulkhead mounted jack to jack adaptor with gold plated centre contact and nickel plated body.
| Complete Electronics Part No. | 20501A0 |
|---|---|
| Manufacturers Part No. | 20-501-A0 |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 300MHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 250
- Weight:
- Mating Force: 20N Max
- Uncoupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
