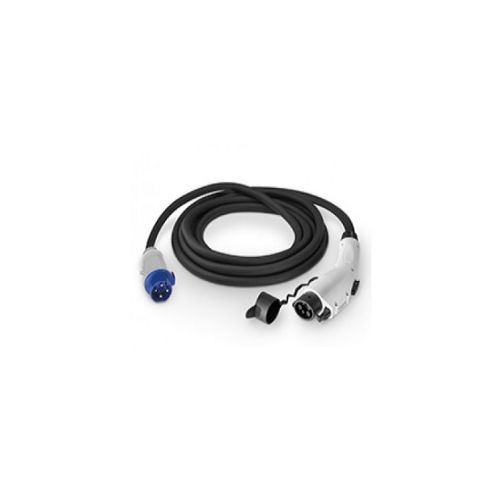

201.CSA111-5 | Type 3A to Type 1 Charging Cable
Type 3A to Type 1 Electric Vehicle Charging Cable. 20 Amp, Single Phase, Length: 5 metres
| Complete Electronics Part No. | 201CSA1115 |
|---|---|
| Manufacturers Part No. | 201.CSA111-5 |
| Cable Type: | Single Phase |
| Type: | Charging Cable Type 3A to Type 1 |
| Cable Length: | 5 Metres |
| Rated Current: | 20A |
Description
EV Charger Cord Set IP44 20A p.3A 16A - s.T1 20A
- AC charging cable
- Single Phase
- 230 V (AC)
- Rated Current: 20 Amps
- 3.7 kW
- 3 Power Contacts (L1, N, PE)
- Cable Section: 3x2,5 + 1x0,5mm²
- Crimp Connection
- With protective caps
- Alternating current (AC) via type 1 vehicle inlets
- Compatible with type 3A Infrastructure Socket Outlets
- Silver-plated surface of the power and signal contact
- Suitable for all weather conditions
- Cable design for a long service life
- Oil, Dust and water resistant
- Black Straight cable
- Cable Length: 5 metres
- IP Protection IP44
