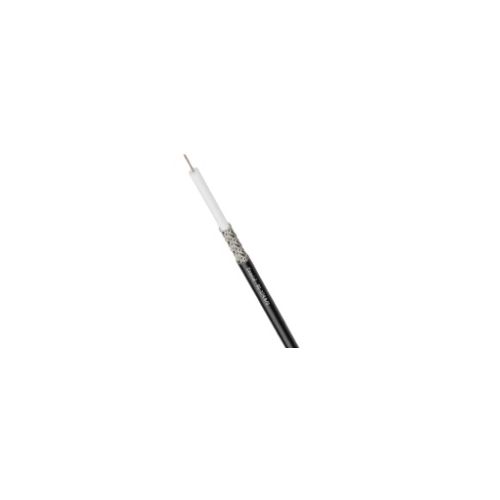

2170001 | COAXIAL - RG-174 A/U | Coaxial Cable
RG-174 A/U are coaxial cables for radio and computer, distortion-free and low-attenuation of signals with a high bandwidth, designed for frequencys up to 1 GHz
| Complete Electronics Part No. | 2170001 |
|---|---|
| Manufacturers Part No. | 2170001 |
| Cable Type: | Coaxial Cable |
| Cable Jacket: | UV Resistant |
Description
2170001 / UNITRONIC® COAXIAL CABLE 1x RG 174 A/U
RG-174 A/U are coaxial cables for radio and computer systems
Product Design
Cable design and electrical properties of M17/119-RG174 to MIL-C-17
Designation in accordance with MIL-DTL-17 H: M17/196-00001
Designation in accordance with MIL-DTL-17 H: M17/196-00001
Conductor: stranded copper plated steel wire, 7x0.16 (0.14 mm²), Ø: 0.48 ± 0.025 mm
Number of Cores: 1
Number of Cores: 1
Screen: braid of bare copper wires coverage 96 % (nominal value)
Outre sheath colour: Black PVC
Dielectric, Polyethylene (PE)
Nominal outer diameter; 2.8mm
Weight: 12 kg/km
Max. conductor temperature, fixed installation: -40˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance: max. 101 pF/m (1 kHz)
Basic material of outer sheath: Polyvinylchloride (PVC)
Characteristic impedance 50 ± 2 Ω
Peak operating voltage max. 1.5 kV (HF voltage)
Rated voltage max. 1.1 kV (RMS)
Test voltage 2 kV
Test voltage 2 kV
Attenuation max.
max. 45 dB/100 m (200 MHz)
max. 59 dB/100 m (400 MHz)
max. 92 dB/100 m (1000 MHz)
max. 59 dB/100 m (400 MHz)
max. 92 dB/100 m (1000 MHz)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
The product is heat resistant up to 80°C (Fixed Instaliations)
For fixed installation and occasional movement
For high thermal and chemical loads.
Suitable for outdoor use, subject to the temperature range
CE marked, EAC-certified
Lapp part number: 2170001
Length: 100M
Length: 100M
