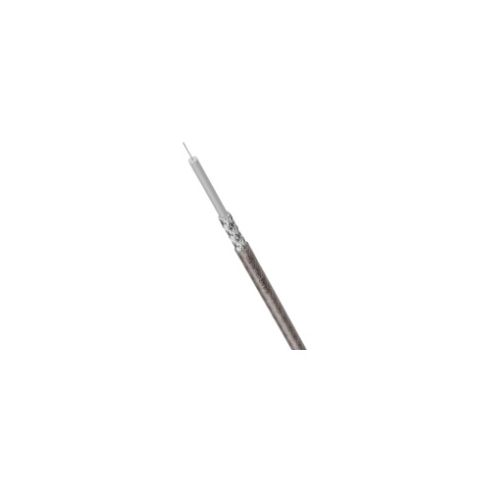

2170002 | COAXIAL - RG-178 B/U | Coaxial Cable
RG 178 B/U Coaxial Cable, Impedance: 50 Ω ohm, flame retardant, for applications related to commercial radio- (high) frequency technology and electronics
| Complete Electronics Part No. | 2170002 |
|---|---|
| Manufacturers Part No. | 2170002 |
| Cable Type: | Coaxial Cable |
Description
2170002 / UNITRONIC® COAXIAL CABLE 1x RG 178 B/U
RG-178 B/U are coaxial cables for radio and computer systems
Product Design
Cable design and electrical properties of M17/93-RG178 to MIL-C-17
Designation in accordance with MIL-DTL-17 H: M17/140-00001
Designation in accordance with MIL-DTL-17 H: M17/140-00001
Conductor: steel wire, copper plated silver, 7x0.102 mm (30AWG/0.057 mm²)
Number of Cores: 1
Screen: braid of bare copper wires coverage 96 % (nominal value)
Outre sheath colour: Transparent brown
Dielectric, Polytetrafluoroethylene (PTFE)
Nominal outer diameter; 1.91mm
Weight: 9 kg/km
Max. conductor temperature, fixed installation: -55˚C up to 250˚C
Electrical / Insulation Parameters
Mutual capacitance: max. 95 pF/m (1 kHz)
Basic material of outer sheath: Fluoroethylene propylene (FEP)
Characteristic impedance 50 ± 2 Ω
Peak operating voltage max. 1 kV (HF voltage)
Rated voltage max. 0.75 kV (RMS)
Test voltage 2 kV
Test voltage 2 kV
Attenuation max.
max. 62 dB/100 m (200 MHz)
max. 92 dB/100 m (400 MHz)
max. 152 dB/100 m (1000 MHz)
max. 280 dB/100 m (3000 MHz)
max. 92 dB/100 m (400 MHz)
max. 152 dB/100 m (1000 MHz)
max. 280 dB/100 m (3000 MHz)
Product Features
Flame retardant - No
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
The product is heat resistant up to 250°C (Fixed Instaliations)
For fixed installation and occasional movement
For high thermal and chemical loads.
Suitable for outdoor use, subject to the temperature range
CE marked, EAC-certified
Lapp part number: 2170002
Length: 100M
Length: 100M
