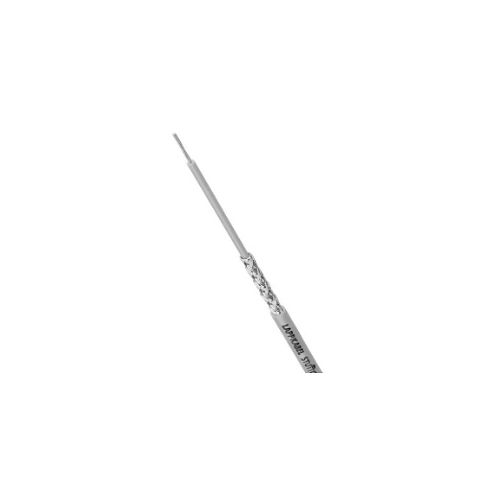

2170003 | COAXIAL - RG-188 A/U | Coaxial Cable
RG 188 A/U Coaxial Cable, Impedance: 50 Ω ohm, flame retardant, for applications related to commercial radio- (high) frequency technology and electronics
| Complete Electronics Part No. | 2170003 |
|---|---|
| Manufacturers Part No. | 2170003 |
| Cable Type: | Coaxial Cable |
Description
2170003 / UNITRONIC® COAXIAL CABLE 1x RG 188 A/U
Cable For distortion-free, low-attenuation, high-frequency signal transmission.
Product Design
Cable design and electrical properties of RG-188 A/U to MIL-C-17
Designation in accordance with MIL-DTL-17 H: M17/138-00001
Conductor: steel wire, copper plated silver, 7x0.17 mm (26AWG/0.16 mm²) , Ø: ca. 0.51 mm
Designation in accordance with MIL-DTL-17 H: M17/138-00001
Conductor: steel wire, copper plated silver, 7x0.17 mm (26AWG/0.16 mm²) , Ø: ca. 0.51 mm
Number of Cores: 1
Screen: braid silvered copper wires coverage 92 % (nominal value)
Outre sheath colour: White
Dielectric, Polytetrafluoroethylene (PTFE)
Nominal outer diameter; 2.76mm
Weight: 17 kg/km
Max. conductor temperature, fixed installation: -55˚C up to 250˚C
Electrical / Insulation Parameters
Mutual capacitance: max. 95 pF/m (1 kHz)
Basic material of outer sheath: Polytetrafluoroethylene (PTFE)
Characteristic impedance 50 ± 2 Ω
Peak operating voltage max. 1.2 kV (HF voltage)
Rated voltage max. 0.9 kV (RMS)
Test voltage 2 kV
Test voltage 2 kV
Attenuation max.
max. 40 dB/100 m (100 MHz)
max. 54 dB/100 m (400 MHz)
max. 100 dB/100 m (1000 MHz)
max. 195 dB/100 m (3000 MHz)
max. 54 dB/100 m (400 MHz)
max. 100 dB/100 m (1000 MHz)
max. 195 dB/100 m (3000 MHz)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
The product is heat resistant up to 80°C (Fixed Instaliations)
For fixed installation and occasional movement
CE marked, EAC-certified
Lapp part number: 2170003
Length: 100M
