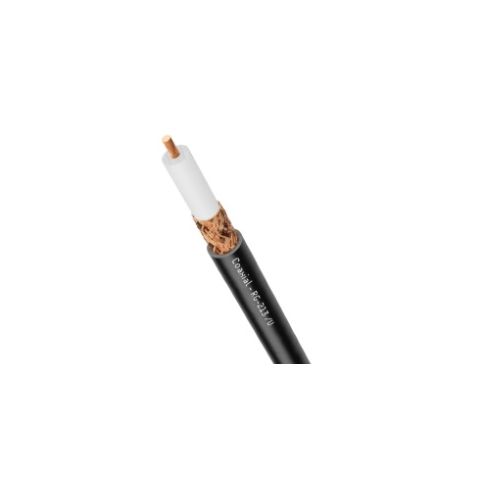

2170005 | COAXIAL - RG-213 /U | Coaxial Cable
RG 213 /U Coaxial Cable, Impedance: 50 ohm, flame resistant, for applications related to commercial radio- (high) frequency technology and electronics
| Complete Electronics Part No. | 2170005 |
|---|---|
| Manufacturers Part No. | 2170005 |
| Cable Type: | Coaxial Cable |
| Cable Jacket: | UV Resistant |
Description
2170005 / UNITRONIC® COAXIAL CABLE 1x RG 213 /U
Cable For distortion-free, low-attenuation, high-frequency signal transmission.
Product Design
Cable design and electrical properties of M17/74-RG213 to MIL-C-17
Designation in accordance with MIL-DTL-17 H: M17/189-00001
Designation in accordance with MIL-DTL-17 H: M17/189-00001
Conductor: stranded bare copper wires, 7x 0.76 (3.17 mm²), Ø: 2.25 ± 0.0254 mm
Number of Cores: 1
Screen: braid of bare copper wires coverage 96 % (nominal value)
Outre sheath colour: Black
Dielectric, Polyethylene (PE)
Nominal outer diameter; 10.3mm
Weight: 157 kg/km
Max. conductor temperature, fixed installation: -40˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance: max. 101 pF/m (1 kHz)
Basic material of outer sheath: Polyvinylchloride (PVC)
Characteristic impedance 50 ± 2 Ω
Peak operating voltage max. 5.0 kV (HF voltage)
Rated voltage max. 3,7 kV (RMS)
Test voltage 10 kV
Test voltage 10 kV
Attenuation max.
max. 10 dB/100 m (200 MHz)
max. 15 dB/100 m (400 MHz)
max. 28 dB/100 m (1000 MHz)
max. 52 dB/100 m (3000 MHz)
max. 15 dB/100 m (400 MHz)
max. 28 dB/100 m (1000 MHz)
max. 52 dB/100 m (3000 MHz)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
The product is heat resistant up to 80°C (Fixed Instaliations)
For fixed installation and occasional movement
CE marked, EAC-certified
Lapp part number: 2170005
Length: 100M
Length: 100M
