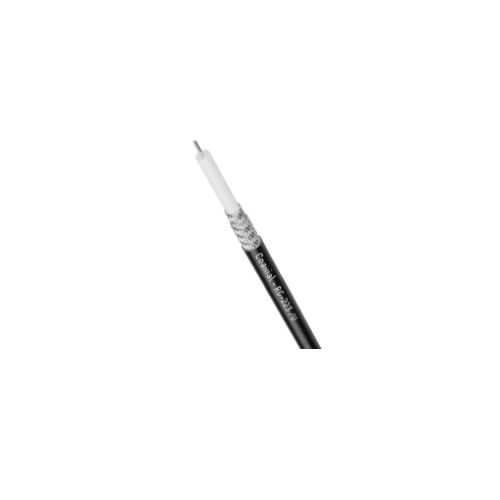

2170007 | COAXIAL - RG-223 /U | Coaxial Cable
RG 223 /U Coaxial Cable, Impedance: 75 Ω ohm, flame retardant, for applications related to commercial radio- (high) frequency technology and electronics
| Complete Electronics Part No. | 2170007 |
|---|---|
| Manufacturers Part No. | 2170007 |
| Cable Type: | Coaxial Cable |
Description
2170007 / UNITRONIC® COAXIAL CABLE 1x RG 223 /U
RG-223 /U are coaxial cables for radio and computer systems
Product Design
Cable design and electrical properties of M17/84-RG215 to MIL-C-17.
Designation in accordance with MIL-DTL-17 H: M17/194-00001
Designation in accordance with MIL-DTL-17 H: M17/194-00001
Conductor: Solid silver plated copper wire, Ø: 0.89 ± 0.025 mm (0.64 mm²)
Number of Cores: 1
Screen: two braids of silvered copper wires (double screened) coverage 95 % each (nominal value)
Outre sheath colour: Black
Dielectric, Polyethylene (PE)
Nominal outer diameter; 5.5mm
Weight: 60 kg/km
Max. conductor temperature, fixed installation: -40˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance: max. max. 101 pF/m (1 kHz)
Basic material of outer sheath: Polyvinylchloride (PVC)
Characteristic impedance 50 ± 2 Ω
Peak operating voltage max. 5.0 kV (HF voltage)
Rated voltage max. 3,7 kV (RMS)
Test voltage 10 kV
Test voltage 10 kV
Attenuation max.
max. 20 dB/100 m (200 MHz)
max. 29 dB/100 m (400 MHz)
max. 48 dB/100 m (1000 MHz)
max. 100 dB/100 m (3000 MHz)
max. 180 dB/100 m (5000 MHz)
max. 302 dB/100 m (12400 MHz)
max. 29 dB/100 m (400 MHz)
max. 48 dB/100 m (1000 MHz)
max. 100 dB/100 m (3000 MHz)
max. 180 dB/100 m (5000 MHz)
max. 302 dB/100 m (12400 MHz)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Flame retardance tested according to UN/ECE-R118
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
The product is heat resistant up to 80°C (Fixed Instaliations)
For fixed installation and occasional movement
CE marked, EAC-certified
Lapp part number: 2170007
Length: 100M
