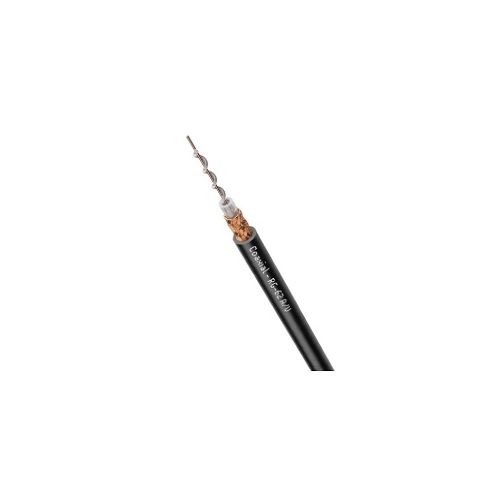

2170008 | COAXIAL - RG-62 A/U | Coaxial Cable
RG 62 Coaxial Cable, Impedance: 100 ohm, UV resistant, Heat resistant, For distortion-free, low-attenuation, high-frequency signal transmission
| Complete Electronics Part No. | 2170008 |
|---|---|
| Manufacturers Part No. | 2170008 |
| Cable Type: | Coaxial Cable |
| Cable Jacket: | UV Resistant |
Description
2170008 / UNITRONIC® COAXIAL-CABLE 1X RG 62 A/U
Cable for telecommunication and data processing systems
Product Design
Cable design and electrical properties of M17/30-RG62 to MIL-C-17.
Designation in accordance with MIL-DTL-17 H: M17/185-00001
Designation in accordance with MIL-DTL-17 H: M17/185-00001
Inner conductor: Solid bare copper clad steel wire, Ø: 0.575 ± 0.025 mm
Number of Cores: 1
Conductor: Solid bare copper clad steel wire
Screen: braid of bare copper wires coverage 96 % (nominal value)
Basic material of outer sheath: Polyvinylchloride (PVC)
Outre sheath colour: Black
Dielectric, Polyethylene cavity insulation
Nominal conductor diameter (mm): 0.64 mm
Nominal outer diameter; 6.15mm
Weight: 52 kg/km
Max. conductor temperature, fixed installation: -40˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance 43 pF/m (1 kHz)
Characteristic impedance 100 ± 5 Ω
Peak operating voltage max. 0.75 kV (HF voltage)
Rated voltage 0.8 kV (50 Hz)
Test voltage 2 kV
Attenuation max.
nom. 15 dB/100 m (200 MHz)
nom. 19 dB/100 m (400 MHz)
nom. 19 dB/100 m (400 MHz)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
The product is heat resistant up to 80°C (Fixed Instaliations)
For distortion-free, low-attenuation, high-frequency signal transmission
For radio and computer systems, as well as all applications related to high frequency
CE marked, EAC-certified
Lapp part number: 2170008
Length: 100M
