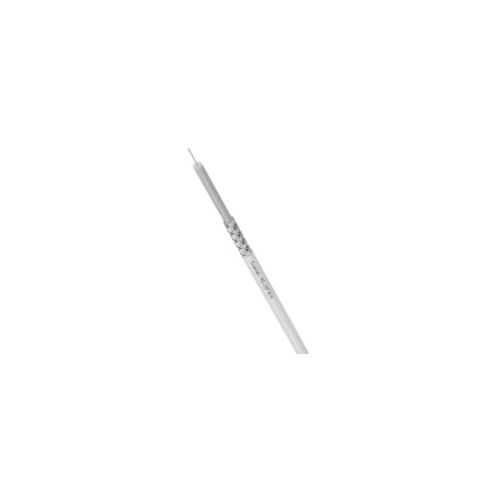

2170010 | COAXIAL - RG-187 A/U | Coaxial Cable
RG 187 A /U Coaxial Cable, Impedance: 75 ohm, flame resistant, for applications related to commercial radio- (high) frequency technology and electronics
| Complete Electronics Part No. | 2170010 |
|---|---|
| Manufacturers Part No. | 2170010 |
| Cable Type: | Coaxial Cable |
| Cable Jacket: | UV Resistant |
Description
2170010 / UNITRONIC® COAXIAL CABLE 1x RG 187 A /U
Cable For distortion-free, low-attenuation, high-frequency signal transmission.
Product Design
Cable design and electrical properties of RG 187 A/U to MIL-C-17
Designation in accordance with MIL-DTL-17 H: M17/138-00001
Conductor: steel wire, copper plated silver, 7x 0 (30 SWG), Ø: ca 2.25 ± 0.30 mm
Number of Cores: 1
Insulation: PTFE 1. 6mm Ø
Screen: braid of silver coated copper wires coverage 94 % (nominal value)
Outre sheath colour: PFA White
Dielectric, Polytetrafluoroethylene (PTFE)
Nominal outer diameter; 2.8mm
Weight: 17 kg/km
Max. conductor temperature, fixed installation: -55˚C up to 250˚C
Electrical / Insulation Parameters
Mutual capacitance: max. 76 pF/m (1 kHz)
Basic material of outer sheath: Polytetrafluoroethylene (PTFE)
Characteristic impedance 50 ± 2 Ω
Peak operating voltage max. 5.0 kV (HF voltage)
Rated voltage max. 1.5 kV (HF voltage)
Test voltage 2 kV
Test voltage 2 kV
Attenuation max.
max. 25 dB/100 m (100 MHz)
max. 69 dB/100 m (400 MHz)
max. 87 dB/100 m (1 GHz)
max. 161 dB/100 m (3 GHz)
max. 69 dB/100 m (400 MHz)
max. 87 dB/100 m (1 GHz)
max. 161 dB/100 m (3 GHz)
Product Features
Flame retardant - No
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
The product is heat resistant up to 250°C (Fixed Instaliations)
For fixed installation and occasional movement
CE marked, EAC-certified
Lapp part number: 2170010
Length: 100M
Length: 100M
