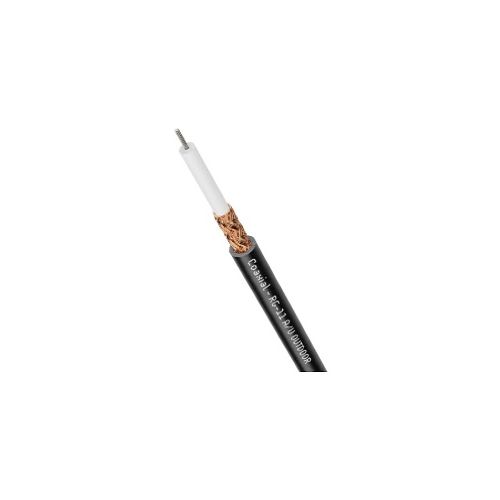

2170011 | COAXIAL - RG-11 A/U OUTDOOR | Coaxial Cable
RG 11 A /U Coaxial Cable, Impedance: 75 Ω ohm, flame retardant, for applications related to commercial radio- (high) frequency technology and electronics
| Complete Electronics Part No. | 2170011 |
|---|---|
| Manufacturers Part No. | 2170011 |
| Cable Type: | Coaxial Cable |
Description
2170011 / UNITRONIC® COAXIAL CABLE 1x RG 11 A /U
Outdoor coaxial cables for radio and computer systems
Product Design
Cable design and electrical properties of M17/6-RG11 to MIL-C-17
Designation in accordance with MIL-DTL-17 H: M17/181-00001
Conductor: stranded tinned copper wires, 7x 0.76 (3.17 mm²), Ø: 2.25 ± 0.0254 mm
Number of Cores: 1
Screen: braid of bare copper wires coverage 92 % (nominal value)
Outre sheath colour: PVC Black
Dielectric, Polyethylene (PE)
Nominal outer diameter; 7.3mm
Weight: 170 kg/km
Max. conductor temperature, fixed installation: -40˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance: max. 67 pF/m (1 kHz)
Basic material of outer sheath: Polyvinylchloride (PVC)
Characteristic impedance 75 ± 3 Ω
Peak operating voltage max. 3.5 kV (HF voltage)
Rated voltage max. 5 kV (RMS)
Test voltage 10 kV
Test voltage 10 kV
Attenuation max.
max. 11 dB/100 m (200 MHz)
max. 16 dB/100 m (400 MHz)
max. 16 dB/100 m (400 MHz)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
Suitable for outdoor use, subject to the temperature range
For high thermal and chemical loads.
The product is heat resistant up to 80°C (Fixed Instaliations)
For fixed installation and occasional movement
CE marked, EAC-certified
Lapp part number: 2170011
Length: 100M
Length: 100M
