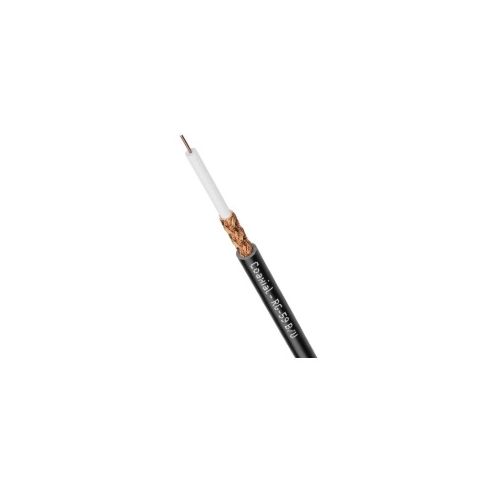

2170012 | COAXIAL - RG-59 B/U | Coaxial Cable
RG 59 B /U Coaxial Cable, Impedance: 75 ± 3 Ω ohm, flame retardant, for applications related to commercial radio- (high) frequency technology and electronics
| Complete Electronics Part No. | 2170012 |
|---|---|
| Manufacturers Part No. | 2170012 |
| Cable Type: | Coaxial Cable |
Description
2170012 / UNITRONIC® COAXIAL CABLE 1x RG 59 B /U
Cable For distortion-free, low-attenuation, high-frequency signal transmission.
Product Design
Cable design and electrical properties of M17/29-RG59 to MIL-C-17
Designation in accordance with MIL-DTL-17 H: M17/184-00001
Designation in accordance with MIL-DTL-17 H: M17/184-00001
Conductor: Solid bare copper clad steel wire, Ø: 0.575 ± 0.025 mm, PE, 3.7 mm Ø
Number of Cores: 1
Screen: braid of bare copper wires coverage 95 % (nominal value)
Outre sheath colour: PVC, Black
Dielectric, Polyethylene (PE)
Nominal outer diameter; 6.15mm
Weight: 57 kg/km
Max. conductor temperature, fixed installation: -40˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance: max. max. 67 pF/m (1 kHz)
Basic material of outer sheath: Polyvinylchloride (PVC)
Characteristic impedance 75 ± 3 Ω
Rated voltage max. 1,7 kV (50Hz)
Test voltage 7 kV
Test voltage 7 kV
Attenuation max.
max. 16,5 dB/100 m (200 MHz)
max. 23 dB/100 m (400 MHz)
max. 23 dB/100 m (400 MHz)
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2, Flame retardance tested according to UN/ECE-R118
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
For radio and computer systems, as well as all applications related to high frequency technology and electronics
Can be used in dry and damp environment
The product is heat resistant up to 80°C (Fixed Instaliations)
For fixed installation and occasional movement
CE marked, EAC-certified
Lapp part number: 2170012
Length: 100M
Length: 100M
