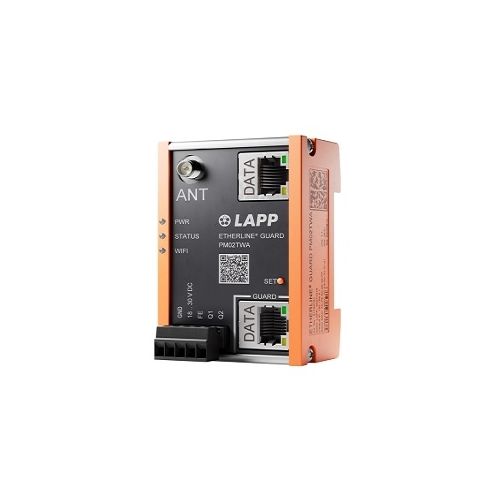

21700151 | ETHERLINE GUARD PM02TWA
Stationary monitoring device to monitor the service life and performance of a data cable at risk of failure.
| Complete Electronics Part No. | 21700151 |
|---|---|
| Manufacturers Part No. | 21700151 |
| Total 10/100 (RJ45) Ports: | 2 |
| Total Ethernet Ports: | 2 |
Description
Device for monitoring cable status
- Easy start-up
- Automated parameterization ("teach-in" in a few seconds)
- Does not require a new data line or changes to the cable desig
- Suitable for data cables in accordance with the 100BASE-TX
- Suitable for EtherCAT, EtherNET/IP and 2-pair PROFINET applications
- For use in the control cabinet (protection class IP 20)
- For use in Ethernet-based automation technology networks.
- Wireless WLAN version
- Reliable cloud communication thanks to the MQTT interface
- Power Supply: DC 24 v (18-30V DC))
- Protection Rating: IP20
- Temperature Range: -25°C up to +65°C
- Part Number: 21700151
