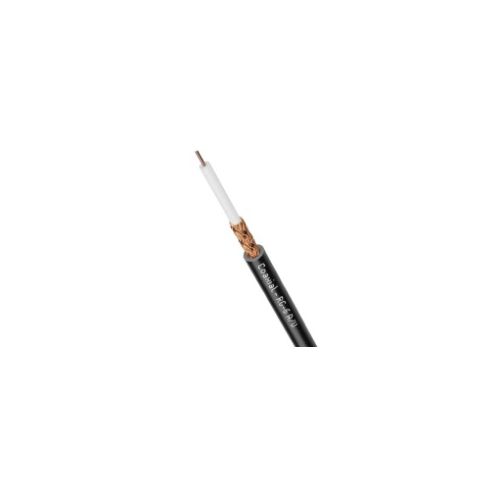

2170016 | COAXIAL - RG-6 A/U | Coaxial Cable

RG 6 A /U Coaxial Cable, Impedance: 75 Ω ohm, flame retardant, for applications related to commercial radio- (high) frequency technology and electronics

More Information
Complete Electronics Part No.	2170016
Manufacturers Part No.	2170016
Cable Type:	Coaxial Cable

Description

2170016 / UNITRONIC® COAXIAL CABLE 1x RG 6 A/U

Cable for distortion-free, radio and computer systems

Product Design

Cable design and electrical properties of M17/2-RG6 to MIL-C-17

Designation in accordance with MIL-DTL-17 H: M17/180-00001

Conductor: Solid bare copper clad steel wire , Ø: 0.724 ± 0.025 mm

Screen: braid of bare copper wires coverage 95 % (nominal value)

Outre sheath colour: Black

Dielectric, Polyethylene (PE)

Nominal outer diameter; 8.4mm

Weight: 130 kg/km

Max. conductor temperature, fixed installation: -40˚C up to 80˚C

Electrical / Insulation Parameters

Mutual capacitance: max.max. 67 pF/m (1 kHz)

Basic material of outer sheath: Polyvinylchloride (PVC)

Characteristic impedance 75 ± 3 Ω

Rated voltage max. 2 kV (50 Hz)
Test voltage 5 kV

Attenuation max.

max. 14 dB/100 m (200 MHz)
max. 20 dB/100 m (400 MHz)

Product Features

Flame retardant - Yes acc. to IEC 60332-1-2

Hydrolysis resistant -
Chemical resistant -

Halogen Free- No

Oil Resistant - No

UV Resistant - No

Weather Resistant -

PWIS-free - No

For continuous flexing - No

For torsional load - No

General Information

Not suitable for continual flexing application in power chains

Ideal protection against electromagnetic interference thanks to copper stranded shielding

For radio and computer systems, as well as all applications related to high frequency technology and electronics

Can be used in dry and damp environment

The product is heat resistant up to 80°C (Fixed Instaliations)

For fixed installation and occasional movement

CE marked, EAC-certified

Lapp part number: 2170016
Length: 100M
