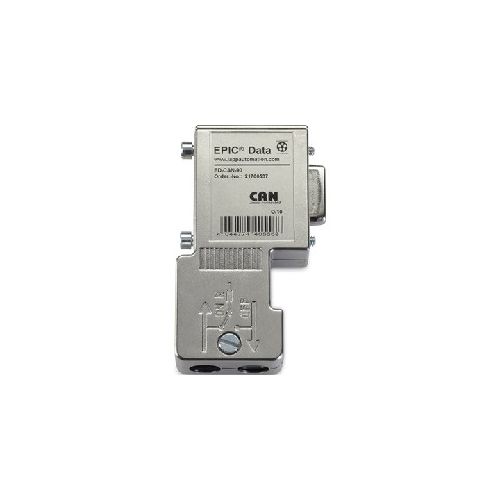

21700537 | ED-CAN-90 | Lapp Cable
CAN Bus-Connectors with screw connection, Cable Outlet: 90°, D-Sub plug, 9-pin, Terminating resistor (integrated) can be switched
| Complete Electronics Part No. | 21700537 |
|---|---|
| Manufacturers Part No. | 21700537 |
| Type: | CAN Bus Connector |
Description
Mechanical characteristics
Lapp part number:
21700537 / EPIC® DATA CAN-90-Sub-D
Data connector; CAN; Sub-D Socket; Angled (90°); Switchable Bus Terminator
Description
EPIC® DATA CAN Sub-D connector
9-pole socket
Connectors and pin layout Acc. to CAN-bus specification
Termination resistor 120 Ω integrated, connectable with slide switch
General characteristics
Suitable cable-Ø 5.0 – 8.0 mm
Termination resistor Activated via external switch
Transmission rate (max.) 1 Mbit/s
Temperature range 0°C to + 60°C (-32°F to 140°F)
Protection class IP 20
Transmission rate (max.) 1 Mbit/s
Temperature range 0°C to + 60°C (-32°F to 140°F)
Protection class IP 20
Number of poles 9
Weight Appr. 0.043 kg
Mechanical characteristics
Dimensions 65 mm x 48 mm 16 mm (LxWxH)
Housing, Metallized
Housing, Metallized
Connector format Sub-D
Connector type Socket
CAN-Bus-cable: 6 terminals for wires up to 1.0 mm2
Assembling type: Field configurable
Metallized housing
Thread type: without
Connector pin assignment
CAN Low = Pin 2
CAN High = Pin 7
CAN Gnd = Pin 3
GND = Pin 6
CAN V+ = Pin 9
CAN High = Pin 7
CAN Gnd = Pin 3
GND = Pin 6
CAN V+ = Pin 9
General Information
The small design size make it suitable for use in limited spaces
Service-friendly screw connection enables assembly without special tools
Thanks to the integrated terminating resistors that can be switched via a slide controller
Improved protection against electromagnetic interference due to metallised housing
Also available as a "PG" variant with a second D-sub interface for programming and diagnosis
Lapp part number:
21700537
