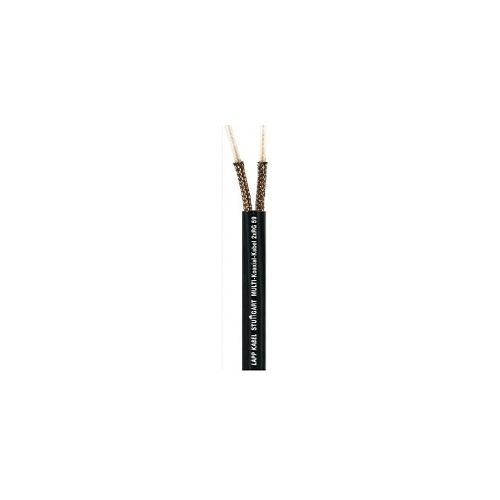

2170056 | MULTI-COAXIAL-CABLE 2XRG 59 B/U | Coaxial Cable
Twin Coaxial RG 59 B/U Coaxial Cable, Impedance 75 ohm, Cable outer diameter: 6.15mm, PVC Outer Sheath, for radio and computer systems
| Complete Electronics Part No. | 2170056 |
|---|---|
| Manufacturers Part No. | 2170056 |
| Cable Type: | Coaxial Cable |
| Cable Jacket: | PE |
Description
2170056 / MULTI-COAXIAL-CABLE 2XRG 59 B/U
Cable for telecommunication and data processing systems
Product Design
Cable design and electrical properties of M17/29-RG59 to MIL-C-17.
Designation in accordance with MIL-DTL-17 H: M17/184-00001
Designation in accordance with MIL-DTL-17 H: M17/184-00001
Inner conductor: Solid bare copper clad steel wire, Ø: 0.575 ± 0.025 mm
Number of Cores: 2
Conductor: Solid bare copper clad steel wire
Basic material of outer sheath: Polyvinylchloride (PVC)
Outre sheath colour: Black
Dielectric, short form: PE
Nominal conductor diameter (mm): 0.575 mm
Nominal outer diameter; 6.15mm x 13 mm
Weight: 116 kg/km
Max. conductor temperature, fixed installation: -40˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance 60 pF/km(1 kHz)
Characteristic impedance 75 Ω
Peak operating voltage max. 2.0 kV (HF voltage)
Rated voltage 2.3 kV (50 Hz)
Test voltage 7 kV
Attenuation max.
nom. 1.1 dB/100 m (1 MHz)
nom. 2.3 dB/100 m (5 MHz)
nom. 3.5 dB/100 m (10 MHz)
nom. 5.3 dB/100 m (20 MHz)
nom. 8.5 dB/100 m (50 MHz)
nom. 11.5 dB/100 m (100 MHz)
nom. 16.5 dB/100 m (200 MHz)
nom. 23 dB/100 m (400 MHz)
nom. 34 dB/100 m (800 MHz)
nom. 39 dB/100 m (1 GHz)
nom. 55 dB/100 m (2 GHz)
nom. 2.3 dB/100 m (5 MHz)
nom. 3.5 dB/100 m (10 MHz)
nom. 5.3 dB/100 m (20 MHz)
nom. 8.5 dB/100 m (50 MHz)
nom. 11.5 dB/100 m (100 MHz)
nom. 16.5 dB/100 m (200 MHz)
nom. 23 dB/100 m (400 MHz)
nom. 34 dB/100 m (800 MHz)
nom. 39 dB/100 m (1 GHz)
nom. 55 dB/100 m (2 GHz)
Product Features
Flame retardant - No
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
The product is heat resistant up to 80°C (Fixed Instaliations)
Cable for telecommunication and data processing systems
CE marked
Lapp part number: 2170056
Length: 500M
Length: 500M
