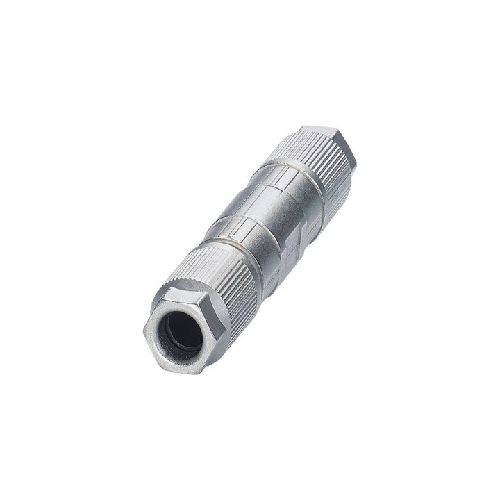

21700641 | EPIC DATA CCR | Lapp Cable
Repair kit for damaged cables, Cable coupler round, shielded, To extend existing cable systems, 360° shielding, With IDC connection technology
| Complete Electronics Part No. | 21700641 |
|---|---|
| Manufacturers Part No. | 21700641 |
| Type: | Connector |
Description
Mechanical characteristics
21700641 / AB-C5-CCR-SH / EPIC® DATA CCR
Repair kit for damaged cables
Description
Easy repair or extension existing cable systems
Insulation displacement connection (IDC)
Weight 0.1 kg
For Sensor/ PROFIBUS/ CAN cables
Cable coupler for connecting shielded cables with up to 5 cores
General characteristics
Ambient Temperature (operation): -40° to +85°C
Protection class IP 65 / 67
Number of cores 5
Diameter connector 19 mm
Total length 83 mm
Status indicator No
UV resistant
Mechanical characteristics
Material of grip body cast zinc
Material knurls cast zinc
Sealing material NBR
Seal material, Sealing cone NBR
Colour housing: Metal
Min. connectable conductor cross section fine-wire 26 AWG
Min. connectable conductor cross section solid-conductor 26 AWG
Max. connectable conductor cross-section fine-wire 20 AWG
Max. connectable conductor cross section solid-conductor 18 AWG
Total length 83 mm
For cable outer diameter min. 5 mm
For max. cable outer diameter 9.7 mm
Electrical characteristics
Rated voltage 60 V DC according to manufacturer specifications
Rated current (at 40 °C) 4 A according to manufacturer specifications
Overvoltage category II
Pollution degree 3
