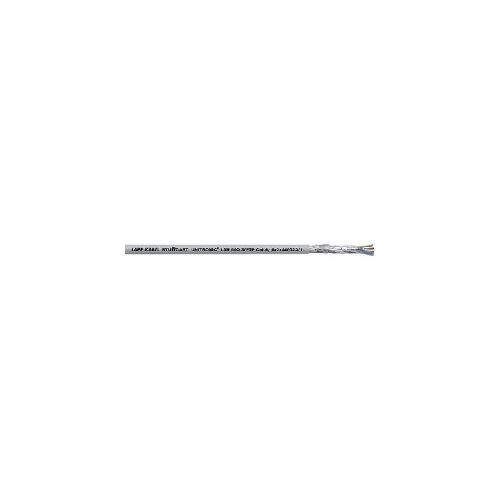

2170143 | UNITRONIC LAN 500 S/FTP CAT.6A | Network Cable
Ethernet cable for Category 6A/ class EA -verified up to 500 MHz, impedance of approximately 100 ohms is suitable for structured building wiring networks.
| Complete Electronics Part No. | 2170143 |
|---|---|
| Manufacturers Part No. | 2170143 |
| Category | CAT 6A |
| Cable Jacket: | PVC |
Description
UNITRONIC LAN 500 S/FTP CAT.6A
Ethernet cable for Category 6A / class EA
- Verified up to 500 MHz
- Suitable for structured building wiring networks
- Copper braid as overall screening and pair screening with aluminium compound foil
- Outer sheath: PVC (color grey RAL1015)
- Flame retardant acc. to IEC 60332-1-2
- Cable length should not exceed a length of 100 m
- Characteristic impedance: 100 Ohm ± 15%
- Minimum bending radius: Fixed Install 4 x Outer Diameter
- Temp Range: Fixed Install -20°C to +60°C
- Temp range: Flexing: 0°C to +50°C
- Used where the terminal density is very high
- Number of Pairs and conductor size: 4 x 2 x AWG23/1
- Cable Outer Connector diameter: 7.7mm
- Reel Length: 100Metres
