2170193 | UNITRONIC LAN 250 U/UTP CAT.6 LSZH | Network Cable

Data cable for Category 6/ class E - verified up to 250 MHz, Operating Temperature: -20°C to 60°C, Halogen Free
More Information
Complete Electronics Part No. 2170193
Manufacturers Part No. 2170193
Category CAT 6
Cable Jacket: LSZH - Low Smoke Zero Halogen
Description

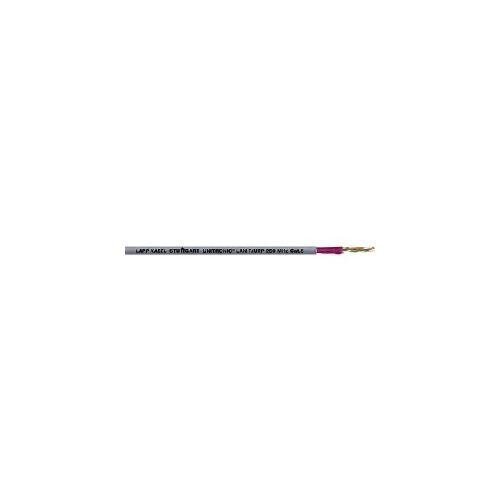

UNITRONIC LAN 250 U/UTP CAT.6 LSZH

Data cable for Category 6/ class E

  • Verified up to 250 MHz
  • Suitable for structured building wiring networks
  • Solid conductor
  • U/UTP: no overall or pair screening,
  • Outer Sheath: LSZH (colour orange RAL2003)
  • Number of pairs and conductor size: 4 x 2 x AWG24/1
  • Cable outer diameter: 6.5mm
  • Used where the terminal density is very high
  • Min bend radius: Fixed installation: 4 x outer diameter
  • Temp range: Fixed installation: -20°C to +60°C
  • Temp Range: Flexing: 0°C to +50°C
  • Reel Length: 100Metres
