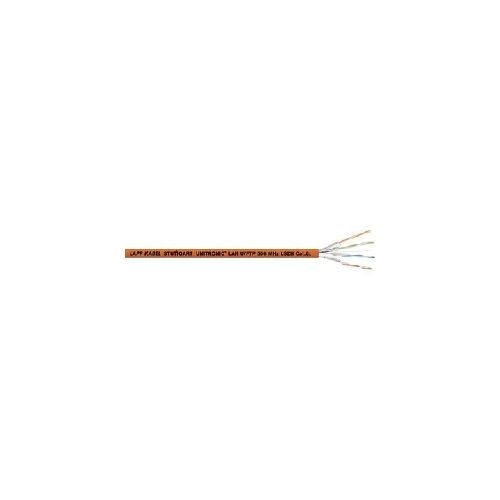

2170195 | UNITRONIC LAN 500 U/FTP CAT.6A LSZH | Network Cable

Ethernet cable for Category 6A/ class EA -verified up to 500 MHz, impedance of approximately 100 ohms is suitable for structured building wiring networks.
More Information
Complete Electronics Part No. 2170195
Manufacturers Part No. 2170195
Category CAT 6A
Cable Jacket: LSZH - Low Smoke Zero Halogen
Description

UNITRONIC LAN 500 U/FTP CAT.6A LSZH

Ethernet cable for Category 6A / class EA

  • Verified up to 500 MHz
  • Suitable for structured building wiring networks
  • Aluminium compound foil as pair screening
  • Outer Sheath LSZH (color orange RAL2003)
  • Flame retardant acc. to IEC 60332-1-2
  • Cable length should not exceed a length of 100 m
  • Characteristic impedance: 100 Ohm ± 15%
  • Minimum bending radius: Fixed Install 4 x Outer Diameter
  • Temp Range: Fixed Install -20°C to +60°C
  • Temp range: Flexing: 0°C to +50°C
  • Used where the terminal density is very high
  • Number of Pairs and conductor size: 4 x 2 x AWG23/1
  • Cable Outer Connector diameter: 7.4mm
  • Reel Length: 100Metres
